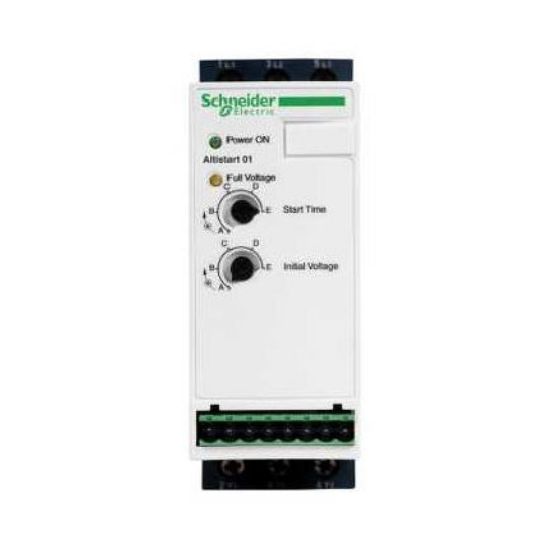

Schneider Motor Starter Soft-Start Only 1 Phase/3 Phase 1/3Ph 1.5/5.5kW Supply 200/415V

Description

Motor Starter Soft-Start Only 1/3 Phase, 110-480 Volt, 60 Amp, 50/60 Hz, 1.5/5.5 kW, 110/240 Volt AC, 24 Volt AC/VDC, Timing: 1, 100, 5, 20 sec, 1 Phase, Three, IP20, Start With Voltage Ramp, -10 to 40 deg C/40 to 60 deg C, 124 mm Height, 45 mm Width, 131 mm Depth

Key Specifications

Barcode (EAN-13)	3389110667165
SKU	TEEATS01N112FT
Brand	Schneider
Range Name	Altistart 01
Product Type	Motor Starters Soft Start

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	ATS01N112FT
Current	60 Amp
Depth	131mm
Frequency	50/60 Hz
Height	124mm
IP Rating	IP20
Phase	1/3 Phase
Starting Modes	Start With Voltage Ramp
Supply Voltage	110-480 Volt
Temperature	-10 to 40 deg C/40 to 60 deg C
Wattage	1.5/5.5 kW
Width	45mm
