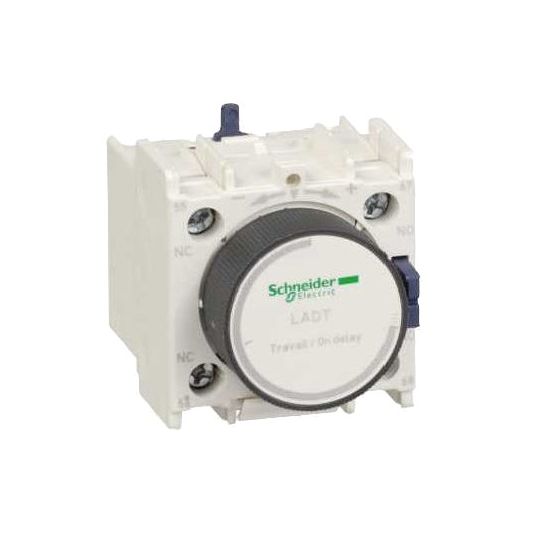

Schneider Pneumatic Timer Front Mount Star Delta 1.0-30sed

Description

TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690 Volt AC, Off-delay setting range 1-30 sec, connection by screw clamp terminals. A delay of 40ms is ensured between opening of NC contact and closing of NO contact. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Key Specifications

Barcode (EAN-13)	3389110386103
SKU	TEELAD-S2
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactor Timer Modules

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	New modern look and feel of all machines Designed to meet the requirements of Electro domestic and HVAC applications Easier to install and operate with multi-standard screws With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries Digital customer experience for technical documents
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LADS2
Contact Configuration	1 Normally Opened/1 Normally Closed
For Use With	All LC1-D Contactors
Depth	61 mm
Height	48 mm
IP Rating	IP20
Mounting Method	Front
Operating Cycles	500000 Cycles
Temperature	-40 to 70 deg C
Terminal Connection	Screw/Clamp
Timer Function	Star Delta 1.0 To 30 seconds
Voltage	690 Volt AC
Width	44 mm
