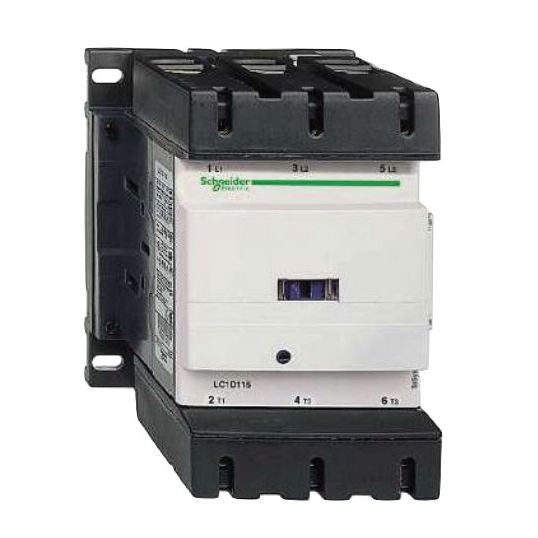

Contactor GP 3P 75kW 150A AC3 200A AC1 415V 1NO-1NC Aux

Product Code
TEELC1-D1506N7
Std Pack Size
1

You need to be registered and logged in to view product details and pricing

Description

Contactor General Purpose, 415 Volt AC, AC3 Rating (kW): 75, AC3 Rating (Amps): 150 at 440 Volt AC, AC1 Rating (Amps): 200 at 440 Volt AC, 1000 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 40-75 ms Opening, Lug Ring, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 158 mm Height, 120 mm Width, 136 mm Depth
Contactor General Purpose, 415 Volt AC, AC3 Rating (kW): 75, AC3 Rating (Amps): 150 at 440 Volt AC, AC1 Rating (Amps): 200 at 440 Volt AC, 1000 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 40-75 ms Opening, Lug Ring, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 158 mm Height, 120 mm Width, 136 mm Depth

Additional Information

Additional Information
Brand Schneider
Range Name TeSys Model D
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LC1D1506N7
Contact Voltage 1000 Volt AC/300 Volt DC
AC1 Rating (Amps) 200 Amp AC1
Operating Coil Voltage 415 Volt AC
AC3 Rating (Amps) 150 Amp AC3
Number Of Poles 3 Pole
Contact Configuration 1 Normally Opened & 1 Normally Closed Aux
IP Rating IP20
Temperature -40 to 60 deg C
Depth 136 mm
Width 120 mm
Terminal Connection Lug Ring
Height 158 mm
Mounting Method DIN Rail/Plate
Operating Time 20-35 ms Closing/40-75 ms Opening
AC3 Rating (kW) 7.5 kW
