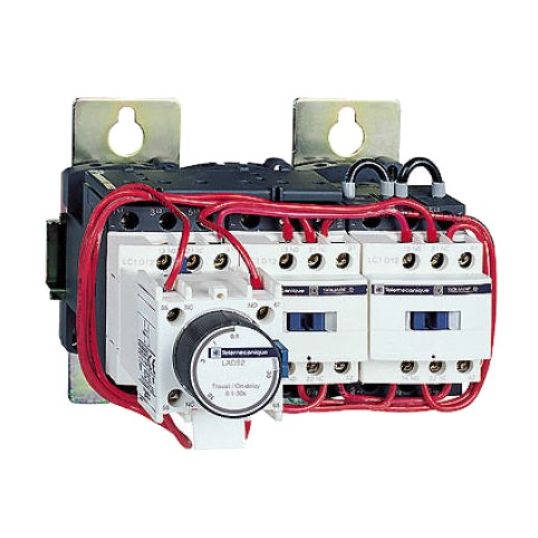

Motor Starter Star Delta, 690 Volt AC, 32 Amp, 50/60 Hz, 25/30 kW, 15 kW @ 220/230 Volt AC , 30 kW @ 415/440 Volt AC, 24 Volt AC, 3 x 3P Poles, 30 sec, Screw,3 x 1NO + 1NC, Open Unenclosed, IP20, 15 M Cycles Mechanical, 1.65 M Cycles Electrical, -40 to 70 deg C, 124 mm Height x 166 mm Width x 149 mm Depth, Overload Purchased Separately
Additional Information
Brand | Schneider |
---|---|
Range Name | TeSys Model D |
Standard Pack Size | 1 |
UNSPSC Class | 39121500 |
UOM | EA |
Vendor Product | LC3D32AB7 |
Auxiliary Contact Rating | 3 x 1 Normally Opened & 1 Normally Closed |
Coil Voltage | 24 Volt AC |
Connection Type | Screw |
Enclosure Type | Open Unenclosed |
Frequency | 50/60 Hz |
Depth | 149 mm |
Height | 124 mm |
IP Rating | IP20 |
Motor Power | 15 kW @ 220-230 Volt AC /30 kW @ 415-440 Volt AC |
Operating Cycles | 15 M Cycles Mechanical/1.65 M Cycles Electrical |
Please Note | Overload Purchased Separately |
Product Type | Motor Starters Star Delta |
Operating Temperature | -40 to 70 deg C |
Voltage | 690 Volt AC |
Timing | 30 sec |
Wattage | 25/30 kW |
Width | 166 mm |
Current | 32 Amp |
