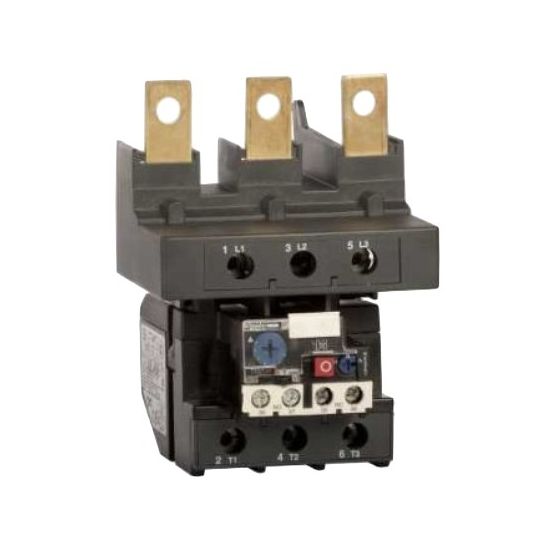

Schneider Thermal Overload Relay DIN Rail/Plate Mount 80-104A 1000V 1NO-1NC Class 10A Blue Push-Button IP20 Screw Clamp

Description

Thermal Overload Relay, Setting Range From (Amp): 80, Setting Range To (Amp): 104, 1000 Volt AC, 1NO-1NC, 0-400 Hz, Class 10A, Blue Push-Button, Tightening Torque: 1.7 N/m, DIN Rail/Plate Mount, Screw Clamp Terminal, IP20, -20 to 60 deg C, 123 mm Depth, For Use With: LC1D115 and LC1D150 Contactors, Please Note: 2 Phase

Key Specifications

Barcode (EAN-13)	3389110523331
SKU	TEELRD-4365
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	LRD4365
Contact Configuration	1 Normally Opened & 1 Normally Closed
Control Type	Blue Push-Button
Frequency	0-400 Hz
Depth	123 mm
For Use With	LC1D115 and LC1D150 Contactors
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Please Note	2 Phase
Operational Voltage	1000 Volt AC
Setting Range To (Amp)	104.0
Terminal Connection	Screw Clamp
Tightening Torque	1.7 N/m
Temperature	-20 to 60 deg C
Setting Range From (Amp)	80.0
Trip Characteristic	Class 10A
