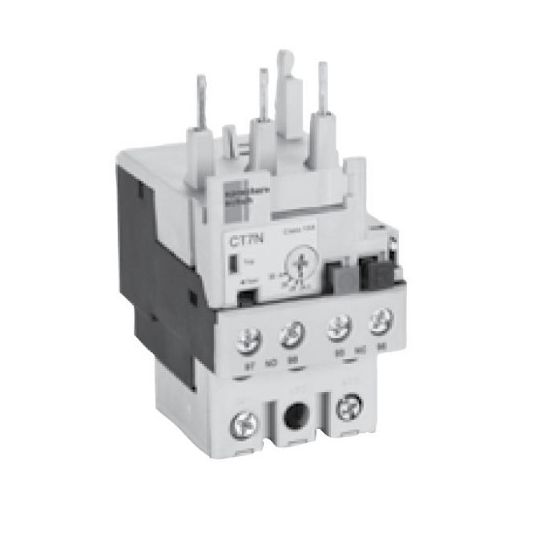

Sprecher+Schuh Thermal Overload Relay 24.5-30A 690V 1NO-1NC Class 10A Auto/Man

Description

Thermal Overload Relay, 690 Volt AC Operational Voltage, Setting Range From (Amp): 24.5, Setting Range To (Amp): 30.0, 50/60 Hz, Class 10A, Automatic/Manual Control, 1 Normally Opened/1 Normally Closed Configuration, 2.5-3.5 Nm Tightening Torque, Direct Attachment Mounting, Screw Terminal, For Use With CA7-30 to CA7-37 Contactors, IP00, -20 to 60 deg C, 81.1 mm Height, 45 mm Width, 63.5 mm Depth, 1 Phase

Key Specifications

Barcode (EAN-13)	9321807226969
SKU	S&SCT7N-37-C30
Brand	Sprecher+Schuh
Range Name	CT7N
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Consistent and reliable protection for peace of mind Differential release for phase loss sensitivity and protection of motors in phase loss conditions
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CT7N37C30
Contact Configuration	1 Normally Opened/1 Normally Closed
Control Type	Automatic/Manual
Depth	63.5 mm
Operational Voltage	690 Volt AC
Frequency	50/60 Hz
For Use With	CA7-30 to CA7-37 Contactors
IP Rating	IP00
Mounting Method	Direct Attachment
Height	81.1 mm
Please Note	1 Phase
Setting Range From (Amp)	24.5
Setting Range To (Amp)	30.0
Temperature	-20 to 60 deg C
Terminal Connection	Screw
Trip Characteristic	Class 10A
Tightening Torque	2.5-3.5 Nm
Width	45 mm
