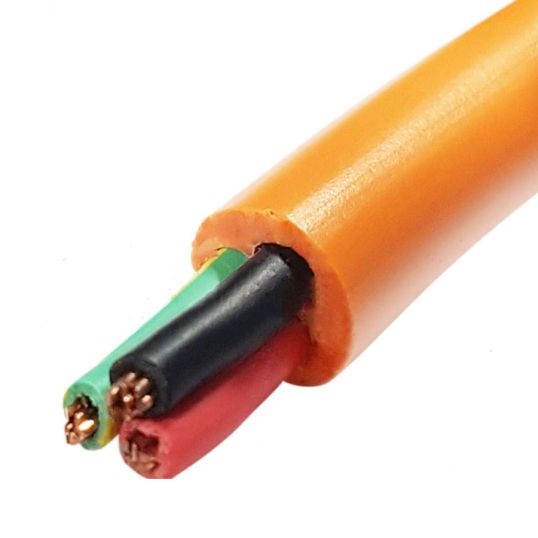

APEC 4mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 500mtr

Description

Circular Cable, Unarmoured, 4mm, Annealed Copper, 0.6-1 kV, 2 Core + Earth, 13.2mm Overall Diameter, 2.5mm Earth Conductor, 500 mtr Length, 1mm + 0.8mm Earth Insulation Thickness, 1.8mm Sheath Thickness, Red/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	932666300395
SKU	APEMVM004E025K1-5
Brand	APEC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MVM004E025K1-5
Conductor Size	4 mm
Core Colours	Black/Red/Green/Yellow
Conductor Type	Annealed Copper
Earth Conductor Size	2.5 mm
Insulation Material	V-90 PVC
Insulation Thickness	1 mm + 0.8 mm Earth
Number of Cores	2 Core + Earth
Overall Diameter	13.2 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	1.8 mm
Standards	AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
