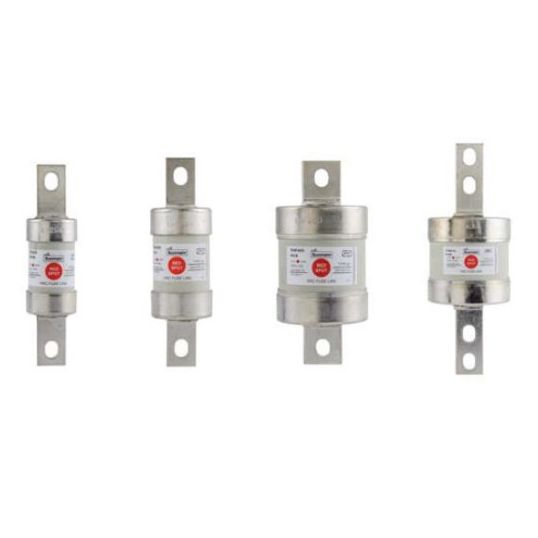

Bussmann Fuse Link HRC Bolt In Centre Motor Rated 200M315 Amp 660 to 690VAC/350VDC 80 kA at 690VAC Class gM BS88 Type B1
Loading...
Description
Fuse Link HRC Bolt In Centre, 660 to 690 VAC/350 VDC, 200M315 Amp, Class gM, Interrupt Capacity: 80 kA at 690 VAC, 111mm Fixing Centres, Bolt In Centre Motor Rated Tag, 40mm Diameter x 136.5mm Length, BS88 Type B1
Key Specifications
| SKU |
BUSTF200M315
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TF200M315 |
| Dimensions | 40mm Diameter x 136.5mm Length |
| Current | 315 Amp |
| Fixing Centres | 111mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type B1 |
| Utilisation Category | Class gM |
| Tag Type | Bolt In Centre Motor Rated |
| Voltage | 660-690 Volt AC/350 Volt DC |
