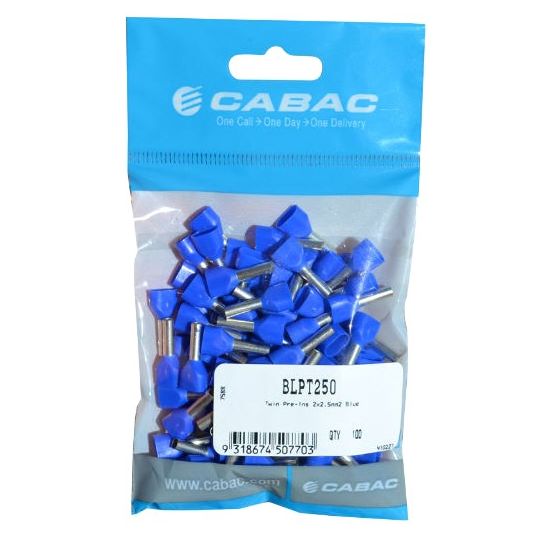

Cabac Bootlace Ferrule Insulated Twin Wire 2x2.5mm 2.8x10mm Pin Blue 18.5mm OAL

$Cabac\Cabac_BLPT250.jpg$

Description

Twin Wire Bootlace Ferrule Insulated, 2.5 mm, 2 Conductors, 10 mm Pin Length, 2.8 mm Pin Diameter, 7.8 mm Collar Inside Diameter, HNKE6, 18.5 mm Overall Length, Copper Sleeve, Blue Insulation, Copper Contact, Tin Plated, 100 Pack

Key Specifications

Barcode (EAN-13)	9318674507703
SKU	CAABLPT250
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Specifically designed to terminate two wires in the same terminal A quick and easy way to terminate two wires Developed for use in smaller switches and devices Halogen free
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLPT250
Collar Inside Diameter	7.8 mm
Conductor Size	2.5 mm
Contact Material	Copper
Crimping Die	HNKE6
Finish	Tin Plated
Insulation Colour	Blue
Number of Conductors	2
Overall Length	18.5 mm
Pack Size	100 Pack
Pin Diameter	2.8 mm
Pin Length	10 mm
Sleeve Material	Copper
