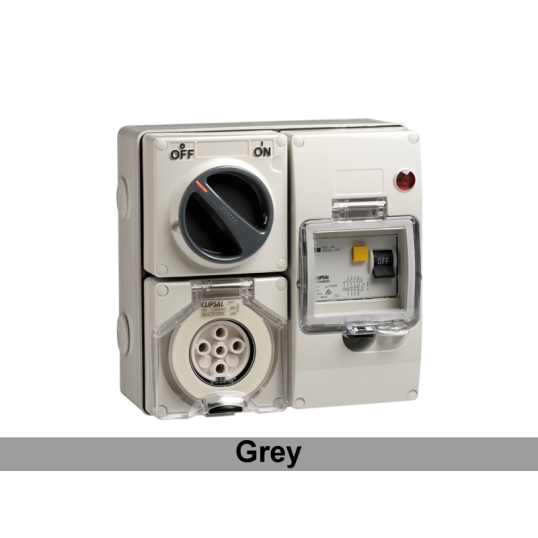

Clipsal 56 Series Switch Socket Outlet Surface Mounting RCD Protected 3Ph 10A 500V 5 Pin Round 30mA Round Grey IP66

Description

Switch Socket Outlet Surface Mounting RCD Protected, 3 Phase, 10 Amp, 500 Volt AC, 5 Pole, 4 Gang, 5 Pin Round, Trip Sensitivity: 30 mA, Screw, Terminal Capacity: 1.5 to 16 mm, Surface Mount, IP66, PC + PET, Grey, 204 mm Height, 204 mm Width, 135 mm Depth, -25 to 75 deg C

Key Specifications

Barcode (EAN-13)	9311554277260
SKU	CLI56SC510RCGY
Brand	Clipsal
Range Name	56 Series
Product Type	Socket Outlets RCD Protected

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56SC510RC-GY
Colour	Grey
Current	10 Amp
Connection Type	Screw
Height	204 mm
Depth	135 mm
IP Rating	IP66
Number Of Gangs	4 Gang
Mounting Method	Surface
Number Of Poles	5 Pole
Phase	3 Phase
Pin Configuration	5 Pin Round
Temperature	-25 to 75 deg C
Terminal Capacity	1.5-16 mm
Trip Sensitivity	30 mA
Voltage	500 Volt
Width	204 mm
