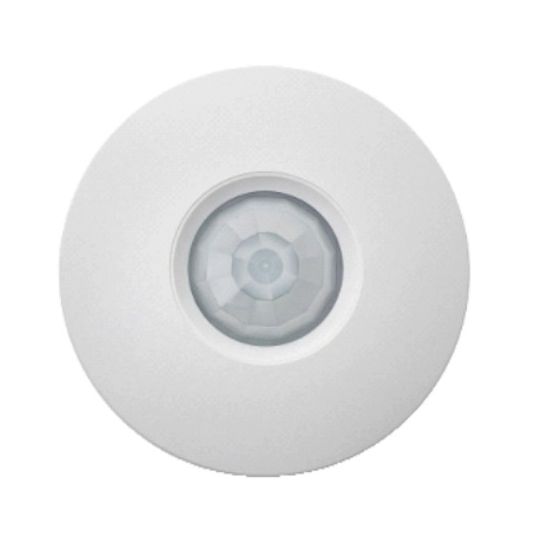

Clipsal C-Bus Light Level Detector Surface Mount 360deg 0-1500Lux White

chevron-left
loader
Loading...

Description

chevron-down
Light Level Detector, Sensing Beam: 360 deg, 15 mA, Lux: 0-1500 lx, Mounting Method: Surface, White

Key Specifications

chevron-down
Barcode (EAN-13)
9311554749231
SKU
CLI5754PE
Brand
Clipsal
Range Name
C-Bus
Product Type
Sensors

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Used to measure and regulate lighting in the range of 0-1500 lux
  • Programmable target light level and margin on installation
  • Target light level and margin are adjustable from C-Bus (Surface Mount model only)
  • Can be used to achieve bank switching or continuous dimming
  • Available in outdoor weatherproof 56 Series enclosure
  • Units draw 15mA (Surface Mount) and 18mA (Weatherproof) from a C-Bus network
Standard Pack Size 1
UNSPSC Class 39121800
UOM EA
Vendor Product 5754PE
Colour White
Current 15 mA
Lux 0-1500 lx
Mounting Method Surface
Sensing Beam 360 deg
