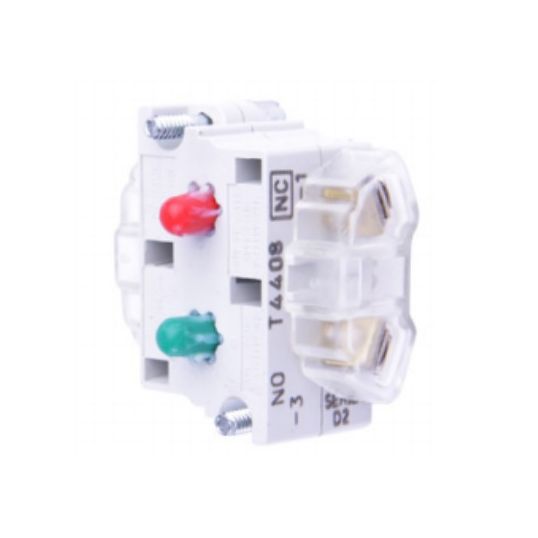

Eaton Cutler Hammer Operator Contact Block With Screw Terminals 1N.O-1N.C 30.5mm

chevron-left
loader
Loading...

Description

chevron-down
Pushbutton Operator Contact Block, 1 Normally Opened/1 Normally Closed Configuration, Screw Terminal, For Use With Standard Pushbutton, IP66, Die Cast Zinc Housing, 30.5 mm, 2 in Height, 1.2 in Width, 1.9 in Depth

Key Specifications

chevron-down
Barcode (EAN-13)
10782114006518
SKU
CUTT1P
Brand
Eaton Cutler Hammer
Range Name
T Series

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Die-cast metal housings create robust and heavy duty devices that can endure repetitive and heavy handed use in industrial environment
  • IP66 rated for protection against dirt and moisture
  • Contact blocks are colour coded, green for NO and red for NC to permit easy identification and troubleshooting
  • Up to 6 contact blocks can stack on each other, allowing for up to 12 circuits per operator
  • Heavy duty zinc die cast construction
  • Enclosed silver contacts with reliability nibs
  • All normally closed contacts have positive opening operation, i.e., normally closed contacts are forced open in the event of contact weld or spring breakage
  • Grounding nibs on the operator casing
  • Logic level contact blocks have palladium tipped contacts to ensure circuit integrity down to 1 mA at 5 volt AC/DC
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product T1P
Contact Configuration 1 Normally Opened/1 Normally Closed
Depth 1.9 inch
For Use With Standard Pushbutton
Height 2 inch
IP Rating IP66
Housing Material Die Cast Zinc
Terminal Connection Screw
Size 30.5 mm
Width 1.2 inch
