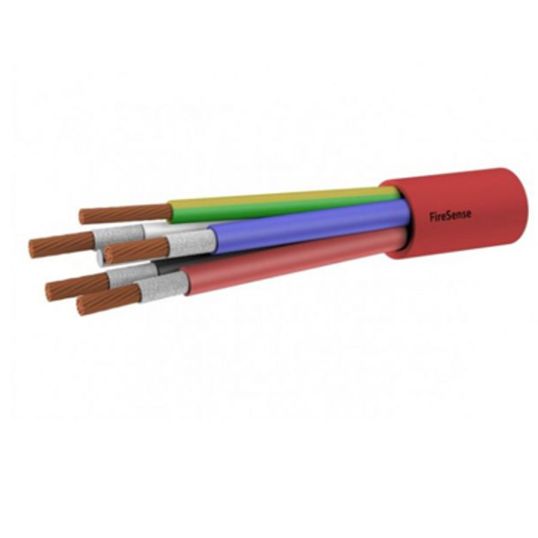

FireSense 2.5 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 1mtr

$FireSense\FireSense_FR-2.50-4C-E.jpg$

Description

Fire Rated Cable, 2.5 mm, Class 2 Stranded Annealed Copper, 0.6-1 kV, 4 Core + Earth, 2.5 mm Earth Conductor, 15.8 mm Overall Diameter, 1 mtr Length, 158 mm Bend Radius, DC: 7.41 Ohm/km Conductor Resistance, Red/White/Black/Blue/Green/Yellow Core, X-HF-110 Insulation, Red/Blue/White/Black/Green/Yellow Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, -25 to 110 deg C, AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	FIRFR-2.50-4C+E
Brand	FireSense
Product Type	Fire Rated Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FR-2.50-4C+E
AS3013 Rating	WS52W
Bend Radius	158 mm
Conductor Resistance	7.41 Ohm/km
Conductor Size	2.5 mm
Conductor Type	Class 2 Stranded Annealed Copper
Core Colours	Black/Blue/Red/White/Green/Yellow
Earth Conductor Size	2.5 mm
Insulation Colour	Black/Blue/Red/White/Green/Yellow
Insulation Material	X-HF-110
Number of Cores	4 Core + Earth
Overall Diameter	15.8 mm
Sheath Colour	Red
Sheath Material	HFS-110-TP
Standards	AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808
Temperature	-25 to 110 deg C
Voltage	0.6-1 kV
