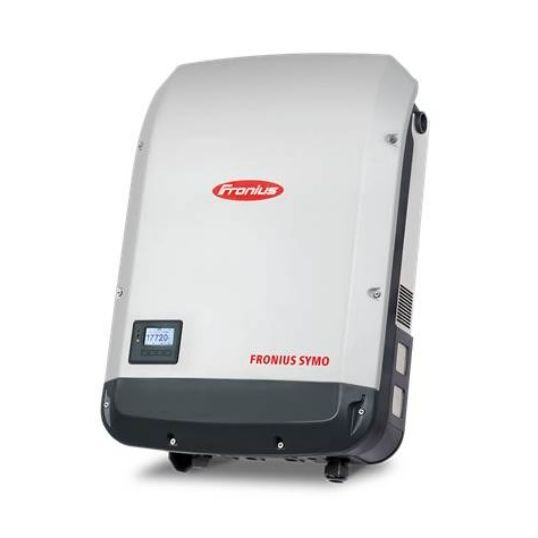

Fronius Symo Solar Inverter Transformerless 2MPPT Three Phase 20kW 27A

$Fronius\Fronius_SYMO20.0-3-M.jpg$

Description

Solar Inverter Grid-connected, 3 Phase Phase, 200-1000 Volt DC Input, 600 Volt DC Nominal, 200-800 Volt DC MPPT Voltage Range, 200 Volt DC Start-up, 33-27 Amp DC Max. Input, 2 MPPTs, 20 kW AC Output, 20 kVA AC Max. Apparent, 50/60 Hz, 28.9 Amp AC Output, 0-1 Inductive/Capacitive Power Factor, 0.981 Efficiency, 0.979 European Weighted Efficiency, 0.99 MPPT Efficiency, Transformerless, WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485, Regulated Air Cooling, IP66, -40 to 60 deg C

Key Specifications

SKU	FRNSYMO20.0-3-M
Brand	Fronius
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	8
UNSPSC Class	26111600
UOM	EA
Vendor Product	SYMO20.0-3-M
AC Operating Frequency	50/60 Hz
AC Max. Apparent Power	20 kVA
AC Output Current	28.9 Amp
AC Output Power	20 kW
Communication Port	WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485
DC Input Voltage	200-1000 Volt
DC Max. Input Current	33-27 Amp
Cooling Method	Regulated Air
DC MPPT Voltage Range	200-800 Volt
DC Nominal Voltage	600 Volt
DC Start-up Voltage	200 Volt
European Weighted Efficiency	0.979
IP Rating	IP66
Efficiency	0.981
Number of MPPTs	2
MPPT Efficiency	0.99
Operating Temperature	-40 to 60 deg C
Phase	3 Phase
Power Factor	0-1 Inductive/Capacitive
Relative Humidity	0-100%
Topology	Transformerless
Width	510 mm
