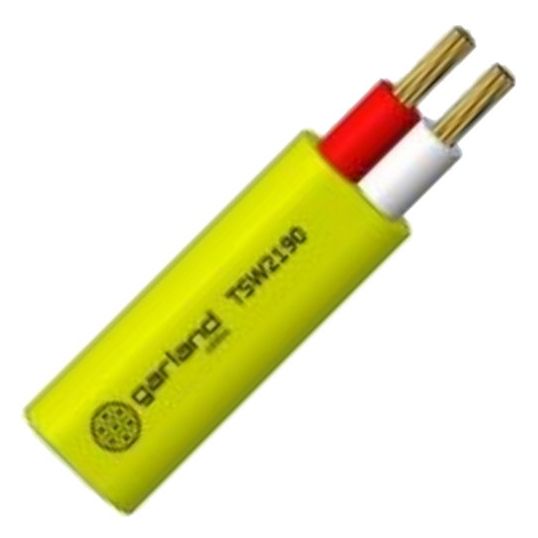

Garland 0.64mm 2 Core Yellow Figure 8 Speaker Cable Double Insulated Polyethylene/PVC

Description

Speaker Cable, Figure 8, Double Insulated, 0.64 mm, Annealed Copper, 2 Core, 1/0.9 mm Strands, 2.6 mm x 4.1 mm Overall Diameter, 26 mm Static Bend Radius, 0.3 mm Insulation Thickness, 0.5 mm Sheath Thickness, 89 N Pulling Tension, DC: 27.1 Ohm/km Conductor Resistance, 1000 MOhm/km Insulation Resistance, Polyethylene Insulation, Red/White Insulation, PVC Sheath, Yellow Sheath, -15 to 70 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	GARTSW2190YL200
Brand	Garland
Product Type	Speaker Cable Figure 8 Double Insulated

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	200
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TSW2190YL200
Bend Radius	Static 26 mm
Conductor Resistance	DC: 27.1 Ohm/km
Conductor Size	0.64 mm
Conductor Type	Annealed Copper
Insulation Colour	Red/White
Insulation Resistance	1000 MOhm/km
Insulation Material	Polyethylene
Insulation Thickness	0.3 mm
Number of Cores	2 Core
Overall Diameter	2.6 mm x 4.1 mm
Pulling Tension	89 N
Sheath Colour	Yellow
Sheath Material	PVC
Sheath Thickness	0.5 mm
Temperature	-15 to 70 deg C
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	1/0.9 mm
