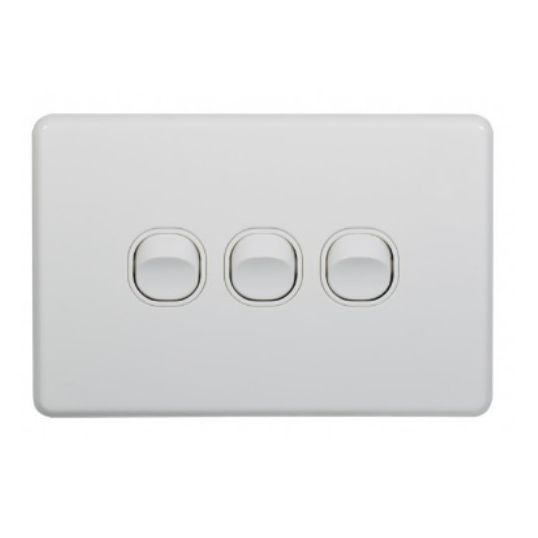

GSME Switch Cover Plate Flush Mount Slim 3 Gang 16A/10AX 250V Horizontal White

Description

Switch Cover Plate Slim, 250 Volt Switch, 16 Amp/10 Amp AX, 3 Gang, 2 Way, Screw Connection, Brass Tunnel Terminal, 4 x 1.5 sq-mm Terminal Capacity, Horizontal Orientation, Wall Mounting, 84 mm Mounting Centres, UV Stabilised Polycarbonate, White, 116 mm Height, 76 mm Width, 26.5 mm Depth

Key Specifications

Barcode (EAN-13)	9349703011403
SKU	GSMFLSW3G
Brand	GSME Trader
Range Name	Flat Cat
Product Type	Covers & Grids

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Switches are rated 10AX/16 Amp 250 Volt to and approved to AS/NZS3133 Fits recessed Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Slotted head screws for the terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow Standard colour is white, also available in black, matte black and brushed aluminium
Standard Pack Size	10
UNSPSC Class	39122200
UOM	EA
Vendor Product	FLSW3G
Colour	White
Connection Type	Screw
Depth	26.5 mm
Height	116 mm
Material	UV Stabilised Polycarbonate
Mounting Centres	84 mm
Mounting Method	Wall
Number Of Gangs	3 Gang
Number Of Ways	2
Orientation	Horizontal
Terminal Capacity	4 x 1.5 sq-mm
Terminal Type	Brass Tunnel
Width	76 mm
