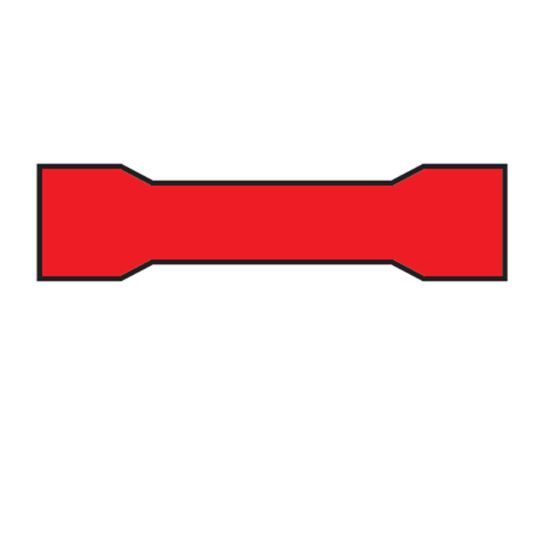

Hellermann Tyton Butt Splice Insulated Double Grip Red 0.5-1.5mm 100/Pack

Description

Butt Splice Insulated Double Grip, 0.5-1.5 mm, 1 Conductors, 600 Volt, 19 Amp, Double Grip Terminal, Electrolytic Copper Body, Copper, PVC Insulation, Red Insulation, 75 deg C, 4 mm Wire Strip Length, 1.7 mm Diameter, 4 mm Height, 26 mm Width, 100 Pack

Key Specifications

Barcode (EAN-13)	9349519000356
SKU	HMYBS1
Brand	Hellermann Tyton
Product Type	Splice & Bullet Connectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Double Grip with special double crimp for use in high vibration areas (use YYT7 crimper) Three piece manufacturing process Colour-coded vinyl insulated for easier identification of cable sizes Resealable bags
Standard Pack Size	100
UNSPSC Class	39121400
UOM	PK
Vendor Product	BS1
Body Material	Electrolytic Copper
Conductive Material	Copper
Conductor Size	0.5-1.5mm
Diameter	1.7 mm
Height	4 mm
Insulation Material	PVC
Insulation Colour	Red
Pack Size	100 Pack
Number of Conductors	1
Temperature	75 deg C
Terminal Type	Double Grip
Voltage Rating	600 Volt
Width	26 mm
Wire Strip Length	4 mm
