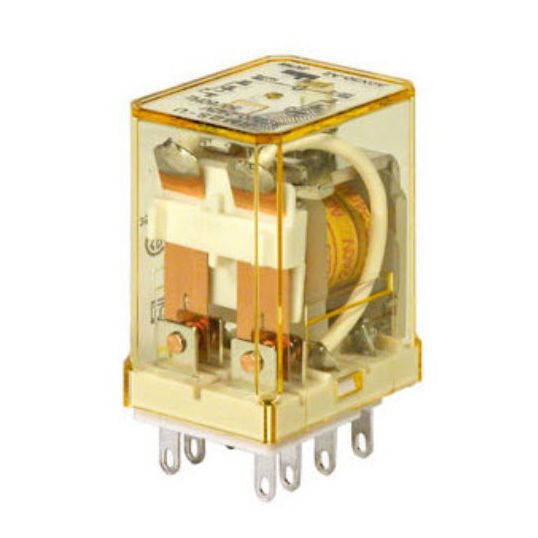

IDEC Miniature General Purpose Relay Plug-In Mount 2P DPDT 5A 24V 8 Pin Flat

Description

Miniature General Purpose Relay, 240 Volt AC, 24 Volt AC, 5 Amp, 1.4/1.2 VA, 8 Pin Flat, 2 Pole, DPDT/2CO, 300 Ohm, Operating Time: 20 Operate/Release ms, Plug-In Mount, Silver, -25 to 45 deg C, 27.5 mm Height, 42 mm Width, 21 mm Depth

Key Specifications

Barcode (EAN-13)	60312122
SKU	IDCRM2S-UAC24
Brand	IDEC
Range Name	RM Series
Product Type	Power Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RM2 features fine silver 5A contacts Without LED
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RM2S-UAC24
Contact Material	Silver
Current	5 Amp
Contact Configuration	DPDT/2 Changeover
Mounting Method	Plug In
Depth	21 mm
Height	27.5 mm
Number Of Poles	2 Pole
Operating Coil Voltage	24 Volt AC
Operating Time	20 Operate/Release ms
Pin Configuration	8 Pin Flat
Power Rating	1.4/1.2 VA
Temperature	-25 to 45 deg C
Resistance	300 Ohm
Voltage	240 Volt AC
Width	42 mm
