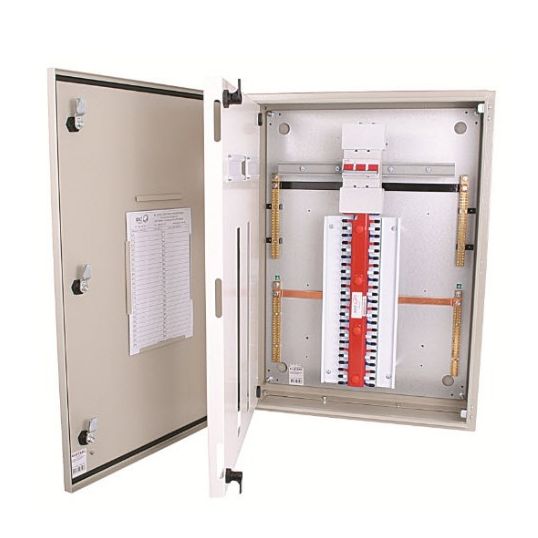

IPD Modular MCB Panelboard W/250A Main Switch Wall Mount 6/24P 1.6mm Mild Steel Grey IP65

Description

Modular MCB Panelboard, 330 Amp Earth and Nutral Bar, Number of Poles: 6/24, Wall, For Use With: 27mm/18mm MCBs, IP65, 1.6mm Mild Steel, RAL7035 Grey, Powder Coated, 800mm Height x 600mm Width x 200mm Depth

Key Specifications

SKU	IPDE65L6/24J250
Brand	IPD
Product Type	Panelboards MCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for 6 kA and 10 kA GE redline and contractor range protection devices Full gland plate top and bottom Hinged Escutcheon Chassis withstand rating: 25 kA/0.1s, 10 kA/1s Metal locks Improved rain woods
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	E65L6/24J250
Colour	Grey
Current	330 Amp
Dimensions	800mm Height x 600mm Width x 200mm Depth
Finish	Powder Coated
IP Rating	IP65
Material	1.6mm Mild Steel
Mounting Method	Wall
Number Of Poles	6/24 Pole
