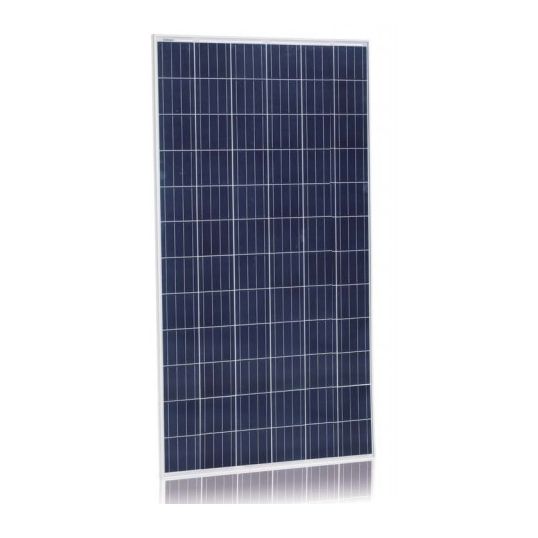

Jinko Solar Eagle Solar Panel 330W Poly-Crystalline 72 Cells

Description

Solar Panel, Polycrystalline Cell Type, 72 Number of Cells, 330 Watt Max. Power, 37.8 Volt Max. Voltage, 8.74 Amp Max. Current, 46.9 Volt Open Circuit Voltage, 9.14 Amp Short Circuit Current, 15 Amp Max. Fuse Current, 1500 Volt DC (UL) Max. System Voltage, 17.01% Module Efficiency, 0 - 3% Power Tolerance, 12 AWG, Length:1200mm Output Cables, IP67 Rated Junction Box, Anodized Aluminium Alloy Frame Construction, 4 mm, High Transmission, Tempered Glass with Anti-Reflection Front Glass, 0.40%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1956 mm ? 992 mm ? 40 mm Dimensions, 26.5 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001 Certifications

Key Specifications

SKU	JKM330PP-72-V
Brand	Jinko Solar
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High voltage Innovative solar cells PID-free Low-light performance Strength and durability Weather Resistance
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM330PP-72-V
Cell Type	Polycrystalline
Certifications	ISO9001 2008; ISO14001 2004; OHSAS18001
Frame Construction	Anodized Aluminium
Front Glass	4 mm/High Transmission/Tempered Glass with Anti-Reflection
Item Weight	26.5 kg
Junction Box	IP67 Rated
Max. Current	8.74 Amp
Max. Fuse Current	15 Amp
Max. Voltage	37.8 Volt
Max. System Voltage	1500 Volt DC (UL)
Number Of Cells	72
Open Circuit Voltage	46.9 Volt
Operating Temperature	-40 to 85 deg C
Output Cables	12 AWG/Length:1200 mm
Power Tolerance	0-3%
Short Circuit Current	9.14 Amp
Temperature Coefficient	0.40%/deg C
Wattage	330 Watt
