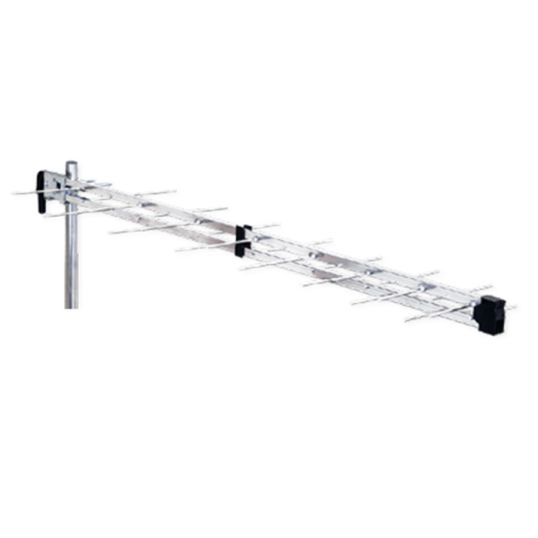

Aerial Industries Log Periodic TV Antenna F-Type 28-51 UHF Channel 12.5 dBi Gain 30 Element

Description

Log-periodic pre-assembled aerials for UHF band characterized by extremely easy connection due to the F connector being located near the mast clamp.

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Thanks to the special pole mount, the aerial can be installed in both vertical and horizontal polarisation without adaptors or other accessories The geometric distribution of the dipoles has been redesigned to achieve excellent filtering for interfering signals in the 5G and 4G LTE band above 694 MHz reserved for mobile telephony It features excellent mechanical resistance for fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, and good electrical performance The F connector is protected by a bayonet connector cover Its design has been registered and made exclusive to the Australian market Black colour aerial
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	LP45F700BX
Beam Width	+/-25 deg
Boom Size	116 cm Length
Channels	28-51 UHF
Connector Type	F-Type
Dimensions	115 cm x 32 cm
Front to Back Ratio	36 dB
Gain (db)	12.5 dBi
Impedance	75 Ohm
Mounting Method	Pole
Number of Elements	30
Return Loss	-15 dB
