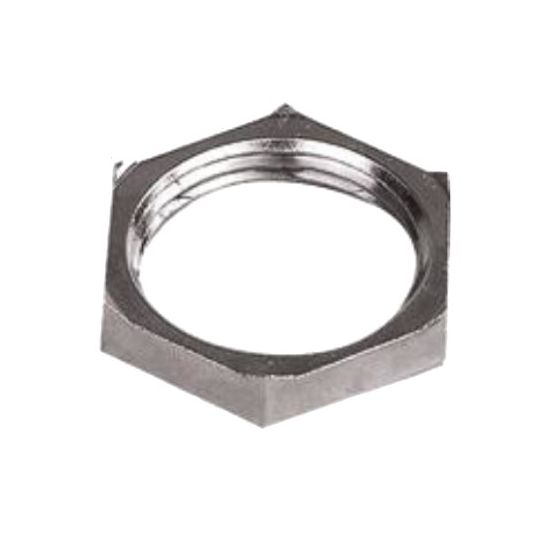

Lapp Kabel EMC Cable Gland Lock Nut Earth-Equipotential Hex M75 x 1.5 Nickel Plated Brass

Description

EMC Cable Gland Lock Nut, Earth-Equipotential, Hex, M75 x 1.5, 1.5 mm Pitch, 85 mm Width Across Flats, 95 mm Width Across Corners, Brass Body, Nickel Plated Finish, -20 to 100 deg C, 8 mm Depth

Key Specifications

SKU	LAP52103371
Brand	Lapp Kabel
Range Name	Skindicht SM-PE-M
Product Type	Gland Accessories

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cutting edges cut through the insulating layer, thus guaranteeing an optimum EMC contact Suitable for all metric glands used in earthing and EMC applications For lacquered, anodized or powder-coated housings Good chemical resistance Mechanical resistance
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	52103371
Depth	8 mm
Finish	Nickel Plated
Temperature	-20 to 100 deg C
Thread Pitch	1.5 mm
Thread Size	M75 x 1.5
Width Across Corners	95 mm
Width Across Flats	85 mm
