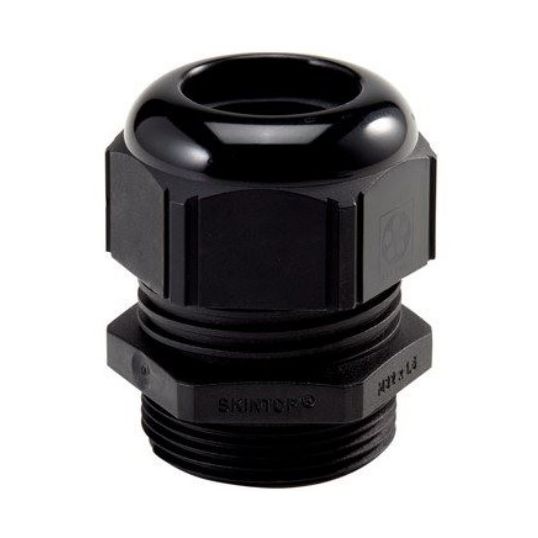

Lapp Kabel Cable Gland General Purpose Polyamide M20 x 1.5 5-10mm IP69

Description

Cable Gland General Purpose Plastic, M20 x 1.5 mm, 9 mm Thread Length, 1.5 mm, 5 mm Min. Sheath OD, 10 mm Max. Sheath OD, IP69, Polyamide Body, CR Seal, Black, -40 to 100 deg C/-20 to 100 deg C, 37 mm Overall Length

Key Specifications

SKU	LAP53111320
Brand	Lapp Kabel
Range Name	Skintop STR-M

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High oil-resistance for maximum reliability Permanent vibration protection Optimum strain relief Temperature resistant Good chemical resistance With reducing seal insert, to seal cables with smaller outer diameters
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	53111320
Body Material	Polyamide
Finish	Black
Overall Length	37 mm
IP Rating	IP69
Min. Sheath OD	5 mm
Max. Sheath OD	10 mm
Seal Material	CR
Thread Pitch	1.5 mm
Temperature	-40 to 100 deg C/-20 to 100 deg C
Thread Length	9 mm
Thread Size	M20 x 1.5 mm
