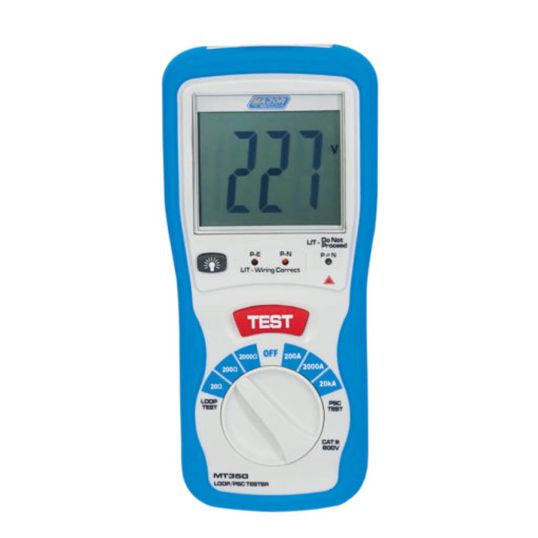

Major Tech Loop Impedance & PSC Tester Digital

Description

Loop Impedance and PSC Tester, 50-255 Volt, 50 Hz, 6 x AA Battery, LCD Display, Loop: 20, 200, 2000 ohm, Doubleinjection Moulded Enclosure, 200mm x 92mm x 50mm, IEC 61010-1 CAT III 600V

Key Specifications

Barcode (EAN-13)	6008229008085
SKU	MAJMT350
Brand	Major Tech

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Custom microprocessor controlled for highest accuracy and reliability Loop impedance of 2000ohm range measurement is carried out with low test current (15mA) Automatic lock-out if test resistor overheats Direct readout of prospective short circuit current and earth fault current Measures low loop impedance of 0.01ohm 3 LED's for checking correct wiring status Safe voltage measurement function Visual indication of reversed phase and neutral at wiring socket Double injection rubber housing
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	MT350
Dimensions	200mm x 92mm x 50mm
Display Type	LCD
Frequency	50 Hz
Power Supply	6 x AA
Product Type	simple
Voltage	50-255 Volt
