Matchmaster Digital TV Antenna VHF 6-12/UHF 28-46 Channels 8/12dB Gain Female Connector

chevron-left
loader
Loading...

Description

chevron-down

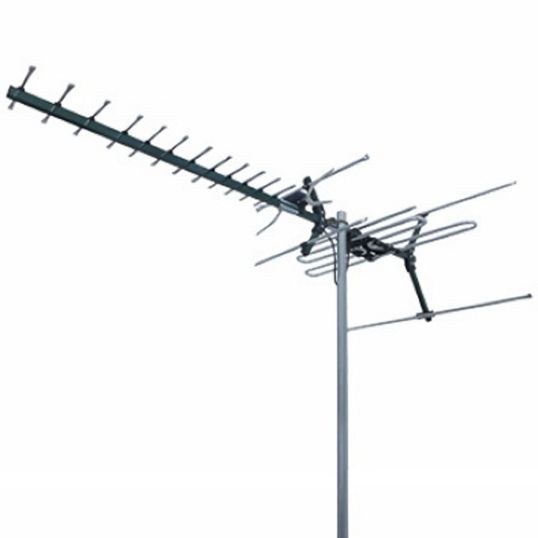

The DC21A is a 21 element VHF/UHF combination Yagi antenna featuring a built-in 4G/5G filter @ 652MHz to help prevent mobile signal inference. Proudly Australian made, this antenna is designed to withstand the harsh Australian environment and is built using heavy-duty 12.7mm extruded tube elements. The DC21A provides clear signal reception for channels 6-12 and 28-40 and comes with our Matchmaster Gold Lifetime Manufacturer Warranty.

Key Specifications

chevron-down
Barcode (EAN-13)
9322190013471
SKU
MAT01MM-DC21A
Brand
Matchmaster
Product Type
TV Antennas

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The best just got better! 01MM-DC21A comes with the Matchmaster Gold Lifetime Manufacturer Warranty
  • Australian made
  • VHF diplexed to UHF section 25dB isolation for improved return loss
  • VHF elements 12.7 mm diameter extruded aluminium tube for superior strength
  • 652 MHz low pass filter > 40 dB attenuation at 750 MHz to eliminate 4G (LTE) interference
  • Attractive packaging ideal for retail merchandising
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product 01MM-DC21A
Balun Type F-Type Balun VHF/F-Type Diplexer Circuit Board Balun
Boom Size 1538 mm Length
Channels 6-12 VHF 28-40 UHF
Connector Type F-Type
For Use With Digital TV
Front to Back Ratio 16 dBA VHF/21 dBA UHF
Number of Elements 21 Elements
