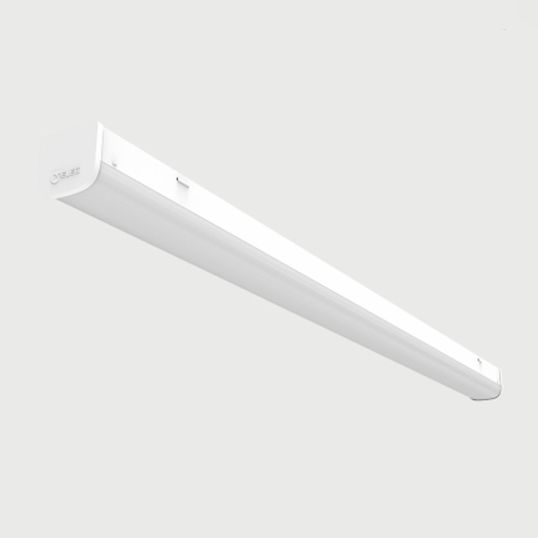

M-Elec MR Series Diffused LED Batten 20/38W Tri-CCT 3000/4000/5700K 2600-4940lm IP20 1220.4x74x61.9mm

Description

The BB V2 has arrived! The original BB design with pre-cut conduit entries, large centre 25 mm back entry and PA16 terminal block remains but a new lighter weight structure wraps the product up with an advanced anti-scratch powder coat finish. With optional microwave sensor or emergency kit can be added to the fitting by simple plug-and-play (tool free) methods making one fitting suitable for a large variety of jobs. The fitting can also be joined using X-joiners making 'endless' connections or trunking style lighting easy to wire and fit off. Suitable for surface, trunking, and vertical installations.

Key Specifications

Barcode (EAN-13)	9348337020324
SKU	MELML-MRBBV2-120
Brand	M-Elec
Range Name	MR Series
Product Type	LED Battens Diffused

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Easy to fit off 2-piece construction Large PA16 terminal block Options for emergency, sensor or joiner accessories
Standard Pack Size	1
UNSPSC Class	39111500
UOM	EA
Vendor Product	ML-MRBBV2-120
Average Lamp Life	50000 hrs
Beam Angle	120 deg
Colour	White
Colour Temperature	3000/4000/5700K
Diffuser Type	Polycarbonate
CRI	80
Dimmable	Non-Dimmable
Height	61.9 mm
Input Frequency	50/60 Hz
Input Voltage	240 Volt
IP Rating	IP20
Light Source	LED
Lumens	2600/2700/2700 lm 4750/5130/4940 lm
Material	Stamped Metal Body/ABS End Cap
Power Factor	0.9
Temperature	-10 to 45 deg C
Wattage	20/38 Watt
Width	74 mm
