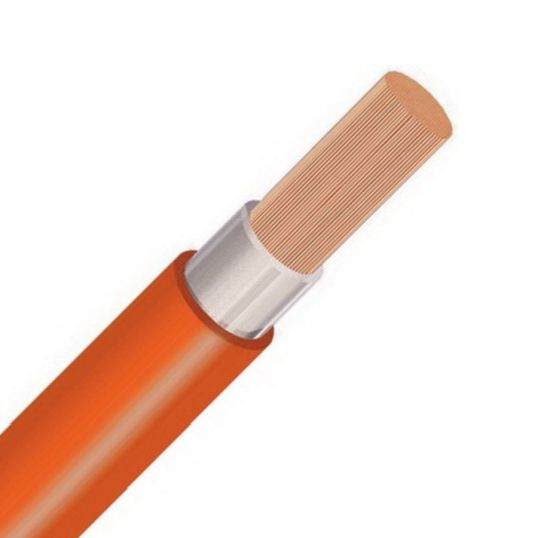

Prysmian 400mm SDI Cable 1mtr
Loading...
Description
SDI Cable, 400 mm, Annealed Copper, 0.6-1 kV, 1 Core, 26.8 mm Nominal Diameter, 33.8-35 mm Overall Diameter, 1100 mtr Length, 210 mm Bend Radius, 2 mm Insulation Thickness, DC: 0.0486 Ohm/km Conductor Resistance, X-90 XLPE Insulation, Natural Insulation, 5V-90 PVC Sheath, Orange Sheath, -25 to 90 deg C, AS/NZS 3000 AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9310835098815
|
|---|---|
| SKU |
MMC4001CFF90
|
| Brand |
Prysmian
|
| Product Type |
SDI Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199535 |
| Bend Radius | 210 mm |
| Conductor Resistance | DC: 0.0486 Ohm/km |
| Conductor Size | 400 mm |
| Conductor Type | Annealed Copper |
| Insulation Colour | Natural |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 2 mm |
| Nominal Diameter | 26.8 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 33.8-35 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 3000 AS/NZS 5000.1 |
| Temperature | -25 to 90 deg C |
| Voltage | 0.6-1 kV |
