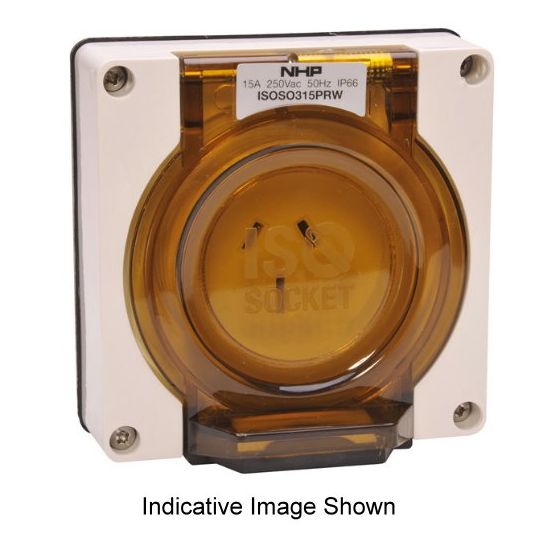

NHP Socket Outlet Less Enclosure 1Ph 15A 250V 3 Pin Flat Resistant White IP66

Description

Socket Outlet Less Enclosure, 1 Phase, 15 Amp, 250 Volt AC, 3 PIn Flat, Chemical Resistant White, IP66, Surface Mount, Polycarbonate, PET Blend, Screw, Terminal Capacity: 1.5 to 6 mm, No Back Box

Key Specifications

Barcode (EAN-13)	9321807206039
SKU	NHPISOSO315PRWLB
Brand	NHP
Range Name	ISO
Product Type	Socket Outlets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Large range covering 10 to 50A in 3, 4 and 5 pin configurations High ingress protection of IP66 across the range User friendly design with extruded ribbed grips, large switch handle and large socket latches for easy operation with or without gloves Suitable for most industrial and commercial applications
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ISOSO315PRWLB
Colour	Chemical Resistant White
Connection Type	Screw
Current	15 Amp
IP Rating	IP66
Mounting Method	Surface
Phase	1 Phase
Pin Configuration	3 Pin Flat
Please Note	No Back Box
Terminal Capacity	1.5-6 mm
Voltage	250 Volt
