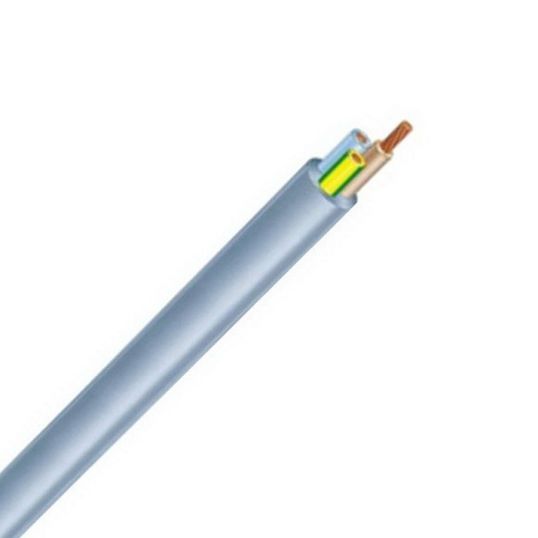

Olex Powerlex Ordinary Duty Flexible Cable 2 Core & Earth 1.5mm 250/440V Copper PVC/PVC Grey

$Olex\Olex_EAHR04A1003GYAA.jpg$

Description

Flexible Cable, Ordinary Duty, 2 Core & Earth, 1.5 mm, Stranded Copper, 250/440 Volt, 0.21 mm Strands, 8.1 mm Overall Diameter, Conductor Resistance: DC - 13.3 Ohm/km AC - 16.2 Ohm/km, Insulation Resistance: 15 MOhm/km, V-90 PVC Insulation, PVC Sheath, Brown Light Blue Green/yellow Cores, Grey Sheath, AS/NZS 3191, AS/NZS 60227

Key Specifications

Barcode (EAN-13)	9319215050740
SKU	OLX30/025-3GYA1
Brand	Olex
Range Name	Powerlex
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	EAHR04A1003GYAA
Conductor Resistance	13.3 Ohm/km - AC: 16.2 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Stranded Copper
Core Colours	Brown/Blue/Green/Yellow
Insulation Material	V-90 PVC
Insulation Resistance	15 MOhm/km
Number of Cores	2 Core + Earth
Overall Diameter	8.1 mm
Sheath Colour	Grey
Sheath Material	PVC
Standards	AS/NZS 3191 AS/NZS 60227
Stranding	0.21 mm
Voltage	250-440 Volt
