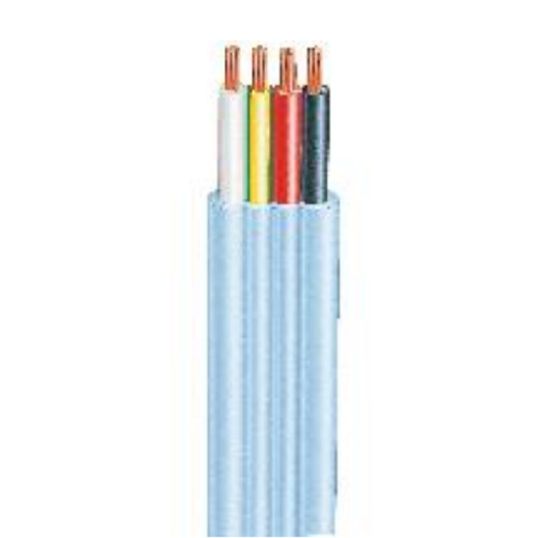

Olex 2.5mm Flat TPS Cable Black/Red/White/Green/Yellow 100mtr

Description

Flat TPS Cable, 2.5 mm, Class 2 Copper, 450-750 Volt, 3 Core + Earth, 12.7 mm x 4.6 mm Overall Diameter, 2.5 mm Earth Conductor, 100 mtr Length, 0.7 mm Insulation Thickness, 0.7 mm Sheath Thickness, DC: 7.41 Ohm/km Conductor Resistance, 13 MOhm/km Insulation Resistance, Red/Black/White/Green/Yellow Core, V-90 PVC Insulation, PVC Sheath, Blue Sheath, AS/NZS 5000

Key Specifications

SKU	OLXENCP07BL003BFEC
Brand	Olex
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	ENCP07BL003BFEC
Conductor Resistance	DC: 7.41 Ohm/km
Conductor Size	2.5 mm
Conductor Type	Class 2 Copper
Core Colours	Black/Red/White/Green/Yellow
Earth Conductor Size	2.5 mm
Insulation Material	V-90 PVC
Insulation Resistance	13 MOhm/km
Insulation Thickness	0.7 mm
Number of Cores	3 Core + Earth
Overall Diameter	12.7 mm x 4.6 mm
Sheath Colour	Blue
Sheath Material	PVC
Sheath Thickness	0.7 mm
Standards	AS/NZS 5000
Voltage	450-750 Volt
