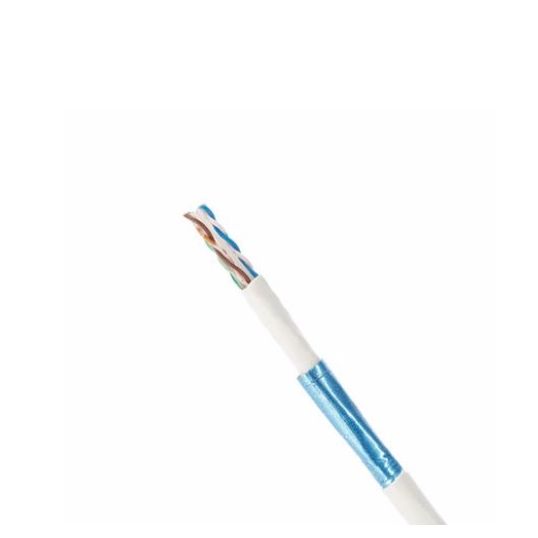

Panduit Pan-Net U/UTP Data Cable Cat6A 4 Pair 26AWG HDPE/PVC White 305M
Loading...
Description
U/UTP Data Cable Cat6A 4 Pair, 80 Volt, 26 AWG, Bend Radius: 24.4mm, 110 N Max. Pulling Force, 4 Pair, Cat6A U/UTP Cable, Solid Copper Conductor, HDPE Insulation, PVC Sheath, White Sheath,-20 to 75 deg C, 305 mtr Length, 6.1mm Outside Diameter
Key Specifications
| Barcode (EAN-13) |
07498324463
|
|---|---|
| SKU |
PADPUL6ASD04WH-EG
|
| Brand |
Panduit
|
| Product Type |
Cat6A Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | RL |
| Vendor Product | PUL6ASD04WH-EG |
| Cable Type | Cat6A U/UTP |
| Bend Radius | 24.4mm |
| Conductor Size | 26 AWG |
| Conductor Material | Solid Copper |
| Insulation Material | HDPE |
| Max. Pulling Force | 110 N |
| Pair Count | 4 Pair |
| Outside Diameter | 6.1mm |
| Sheath Colour | White |
| Sheath Material | PVC |
| Temperature | -20 to 75 deg C |
| Voltage | 80 Volt |
Downloads
