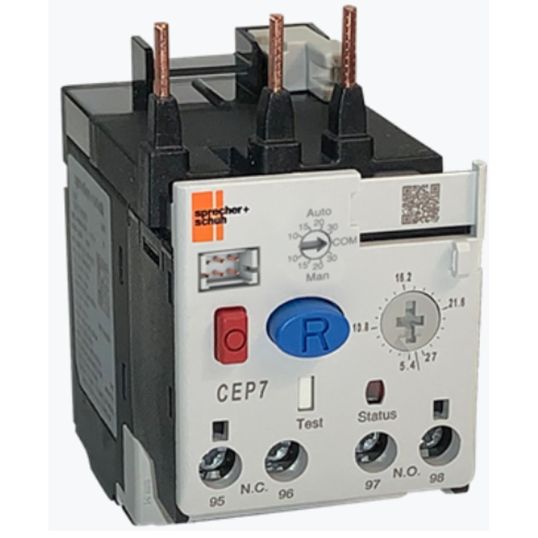

Sprecher+Schuh CEP7-1 Advanced Electronic Overload 5.4-27A For CA7-9/23 Contactors

chevron-left
loader
Loading...

Description

chevron-down
Electronic Overload Relay, 690 Volt Operational Voltage, 5.4-27 Amp Operational Current, Direct Attachment Mounting, Screw Terminal, For Use With CA7-9 to CA7-23 Contactors, 86.6 mm Height, 44.8 mm Width, 84.7 mm Depth

Key Specifications

chevron-down
SKU
S&SCEP71EFEB
Brand
Sprecher+Schuh
Range Name
CEP7-1
Product Type
Contactor Overloads

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • CEP7-1EE: Trip Class 10 and 20, manual reset only
  • CEP7-1EE: Trip Class 10 and 20, manual reset only
  • 5:1 wide current adjustment range to cover a variety of motor applications
  • Supports both single and three-phase operation in a single component
  • A variety of accessories available for enhanced protection
  • Current measurement-based protection
  • Electronic design and therman memory
  • Phase loss protection
  • Self-powered and direct-mount design with CA7 contactors
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product CEP71EFEB
Depth 84.7 mm
Operational Current 5.4-27 Amp
Operational Voltage 690 Volt
For Use With CA7-9 to CA7-23 Contactors
Mounting Method Direct Attachment
Height 86.6 mm
Terminal Connection Screw
Width 44.8 mm
