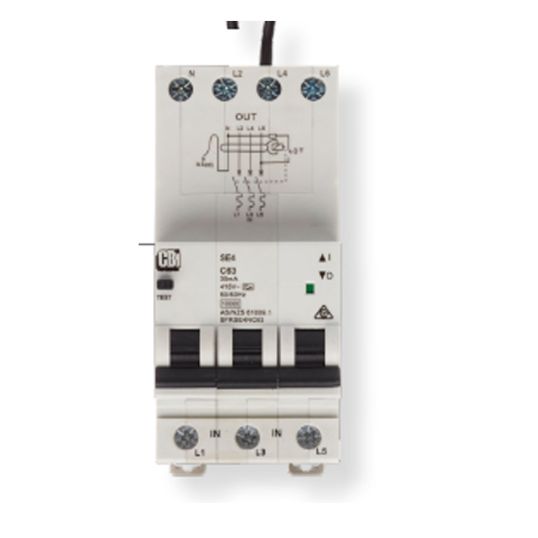

SFR Residual Current Circuit Breaker with Leads 16A 30mA 415VAC 50/60Hz 10kA 3P+N

Description

Residual Current Circuit Breaker, 415 Volt, 16-30 mA, 50/60 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 3 Pole, Pillar Terminal, IP20, DIN Rail Mounting, Black Handle, 5 to 55 deg C, 113.5 mm Height, 53.4 mm Width, 77.2 mm Depth

Key Specifications

SKU	SFRSE4NC16
Brand	SFR
Product Type	Residual Current Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SFRSE4NC16
Colour	Black Handle
Depth	77.2 mm
Height	113.5 mm
Frequency	50/60 Hz
IP Rating	IP20
Interrupt Capacity	10 kA
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Terminal Connection	Pillar
Temperature	5 to 55 deg C
Trip Characteristic	C Curve
Voltage	415 Volt
Trip Sensitivity	30 mA
Width	53.4 mm
