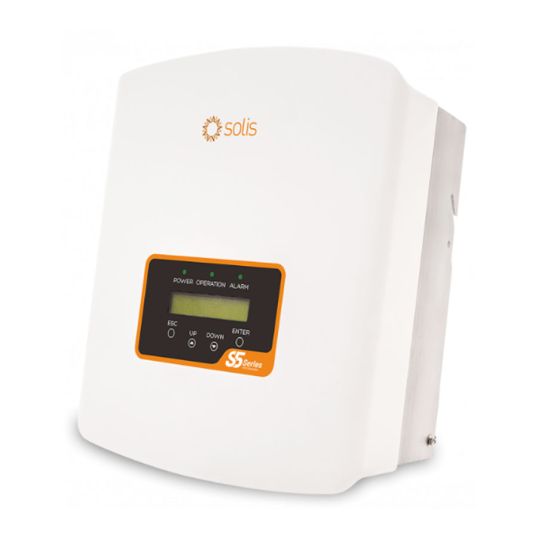

Solis S5 Mini Series PV Grid Tie Inverter Single MPPT 1.5kW 600V 14A Single Phase IP65 Built-in DC

chevron-left
loader
Loading...

Description

chevron-down
PV Grid Tie Inverter, Single Phase, 2 kW DC Input, 600 Volt DC Input, 50-500 Volt DC MPPT Voltage Range, 60 Volt DC Start-up, 14 Amp DC Max. Input, 1 MPPTs, 1.5 kW AC Output, 1.5 kVA AC Max. Apparent, 8.1 Amp AC Output, >0.99 (0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 96.6% Efficiency, 95.4% European Weighted Efficiency, Transformerless, 2000 m Max. Altitude, RS485, Optional: Wi-Fi, GPRS, LCD Display, Natural Convection Cooling, DC: MC4, AC: Quick Connection Plug Connection, IP65, -25 to 60 deg C, 0-100% Relative Humidity, 373mm Height, 310mm Width, 160mm Depth, 7.4 kg

Key Specifications

chevron-down
SKU
SOLS5-GR1P1.5K-M
Brand
Solis
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Max. Input Current 14A
  • Integrate with adjustable Volt-Watt & Volt-Var Function
  • Built-in DC-PV2 Switch comply with AS/NZS 5033 requirements
  • Precise MPPT Algorithm
  • Compact & Lightweight
  • DRM Integrated, fully comply with AS/NZS 4777.2:2020
  • Support 24h Consumption Monitoring with a smart meter
  • Voltage Active Power & Reactive Power
  • Voltage active power and reactive power
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product S5-GR1P1.5K-M
AC Max. Apparent Power 1.5 kVA
AC Nominal Voltage 1/N/PE 230V
AC Operating Frequency 50 Hz
AC Output Current 8.1 Amp
AC Output Power 1.5 kW
Communication Port RS485/Optional: Wi-Fi/GPRS
Connection Type DC: MC4 / AC: Quick Connection Plug
Cooling Method Natural Convection
DC Input Power 2 kW
DC Input Voltage 600 Volt
DC Max. Input Current 14 Amp
DC MPPT Voltage Range 50-500 Volt
DC Nominal Voltage 200 Volt
DC Start-up Voltage 60 Volt
DC Switch Yes (PV2 Switch)
Depth 160 mm
Display Type LCD
Efficiency 96.60%
European Weighted Efficiency 95.40%
IP Rating IP65
Height 373 mm
Max. Operating Altitude 2000 Mtr
Number of MPPTs 1
Operating Temperature -25 to 60 deg C
Phase 1 Phase
Power Factor >0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity 0-100%
Topology Transformerless
Total Harmonic Distortion <3%
Width 310 mm
