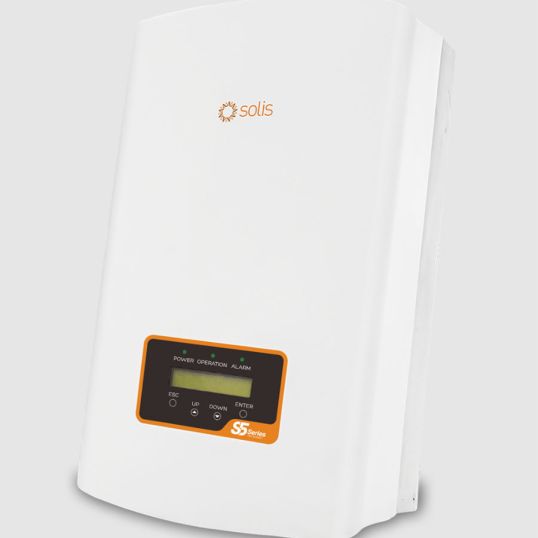

Ginlong/Solis S5 3000W PV Grid Tie 1P Inverter Dual MPPTBuit-in DCInclude WIFI 14A Max. input current

Description

Ginlong/Solis S5 3000W PV Grid Tie 1P Inverter Dual MPPTBuit-in DCInclude WIFI 14A Max. input current IP65

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Max. Efficiency 97.7% 2 MPPT Design with precise MPPT Algorithm Max Input Current 14A Built-in DC-PV2 Switch comply with AS/NZS 5033 requirements DRM Integrated, fully comply with AS/NZS 4777.2:2020 Compact & Lightweight Support 24h Consumption Monitoring with a smart meter Voltage Active Power & Reactive Power
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S5-GR1P3K
AC Operating Frequency	50 Hz
AC Nominal Voltage	1/N/PE 230V
AC Max. Apparent Power	3 kVA
AC Output Current	15.7 Amp
AC Output Power	3 kW
Communication Port	RS485 Optional: Wi-Fi GPRS
Connection Type	DC: MC4/ AC: Quick Connection Plug
DC Input Power	4 kW
DC Input Voltage	600 Volt
DC Max. Input Current	14 Amp
Cooling Method	Natural Convection
DC MPPT Voltage Range	90-520 Volt
DC Nominal Voltage	330 Volt
DC Switch	Optional (PV2 Switch)
DC Start-up Voltage	120 Volt
Display Type	LCD
Depth	160 mm
European Weighted Efficiency	96.60%
IP Rating	IP65
Height	543 mm
Efficiency	97.30%
Max. Operating Altitude	2000 Mtr
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Total Harmonic Distortion	<3%
Topology	Transformerless
Width	310 mm
