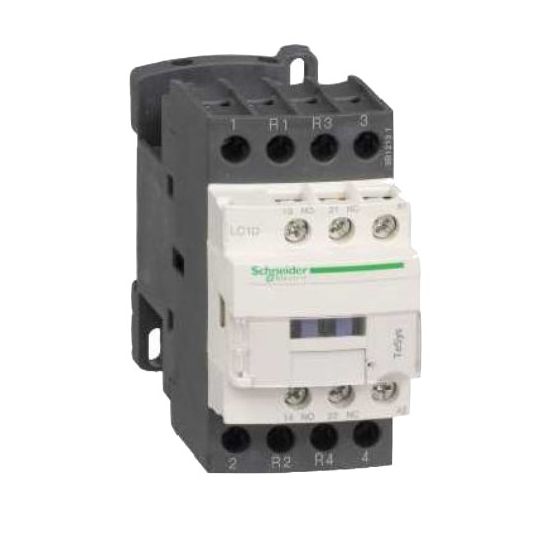

Schneider Contactor General Purpose 4 Pole 25A AC3 40A AC1 48V 1NO-1NC Auxilary DIN Rail/Plate Mount

Description

Contactor General Purpose, 48 Volt AC, AC3 Rating (Amps): 25 at 440 Volt AC, AC1 Rating (Amps): 40 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 4 Pole, Operating Time: 12-22 ms Closing, 4-19 ms Opening, Screw Clamp, DIN Rail Mount or Base/Plate, IP20, -40 to 60 deg C, 105 mm Height, 45 mm Width, 99 mm Depth

Key Specifications

Barcode (EAN-13)	3389110250374
SKU	TEELC1-D258E7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D258E7
AC1 Rating (Amps)	40 Amp AC1
AC3 Rating (Amps)	25 Amp AC3
Contact Voltage	690 Volt AC/300 Volt DC
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Depth	99 mm
Height	105 mm
IP Rating	IP20
Mounting Method	DIN Rail/Base/Plate
Number Of Poles	4 Pole
Operating Coil Voltage	48 Volt AC
Operating Time	12-22 ms Closing/4-19 ms Opening
Temperature	-40 to 60 deg C
Terminal Connection	Screw Clamp
Width	45 mm
