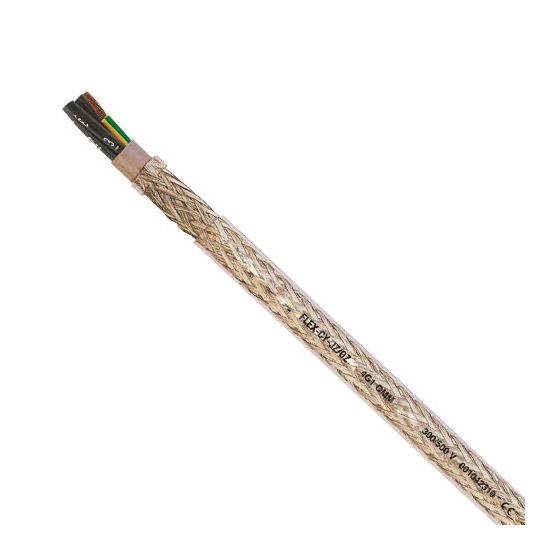

Treotham 1.5mm 17 Core + Earth Clear Flexible Control Cable Screened

Description

Flexible Control Cable Screened, 1.5 mm, Class 5 Bare Copper, 300-500 Volt, 17 Core + Earth, 17.1 mm Overall Diameter, Static 102.6 mm Flexible 256.5 mm Bend Radius, >20 MOhm/km Insulation Resistance, 85% Screen Coverage, Tinned Copper Braid Screen, Black/Green/Yellow/White Numerals Core, PVC Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -15 to 70 deg C, DIN VDE 0295 IEC 60228

Key Specifications

SKU	TRETA30.0015.18
Brand	Treotham
Range Name	Treoflex

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame resistant Self extinguishing Good chemical resistance Oil resistant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TA30.0015.18
Bend Radius	Static 102.6 mm - Flexible 256.5 mm
Conductor Size	1.5 mm
Conductor Type	Class 5 Bare Copper
Core Colours	Black/Green/Yellow/White Numerals
Insulation Material	PVC
Insulation Resistance	>20 MOhm/km
Number of Cores	17 Core + Earth
Overall Diameter	17.1 mm
Screen Coverage	85%
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	PVC
Standards	DIN VDE 0295 IEC 60228
Temperature	Static -40 to 80 deg C Flexible -15 to 70 deg C
Voltage	300-500 Volt
