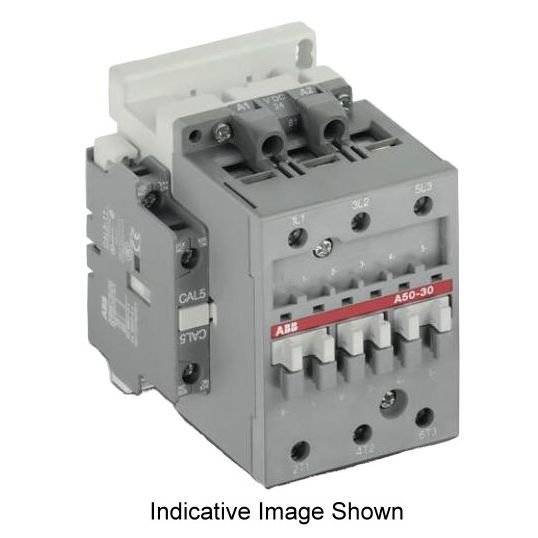

ABB Contactor General Purpose AC Operated Non-Reversing 3 Pole 40kW 75A AC3 125A AC1 240V 1NO-1NC Auxilary
Loading...
Description
Contactor General Purpose AC Operated Non-Reversing, 240 Volt AC, AC3 Rating (kW): 40, AC3 Rating (Amps): 75, AC1 Rating (Amps): 125, 1NO-1NC Auxiliary, 3 Pole, DIN Rail Mount Or Base
Key Specifications
| Barcode (EAN-13) |
3471522093882
|
|---|---|
| SKU |
ABBA75301188
|
| Brand |
ABB
|
| Product Type |
Contactors Non-Reversing
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | A75301188 |
| AC1 Rating (Amps) | 125 Amp AC1 |
| AC3 Rating (Amps) | 75 Amp AC3 |
| AC3 Rating (kW) | 40 kW |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed Aux |
| Mounting Method | DIN Rail/Base |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 240 Volt AC |
