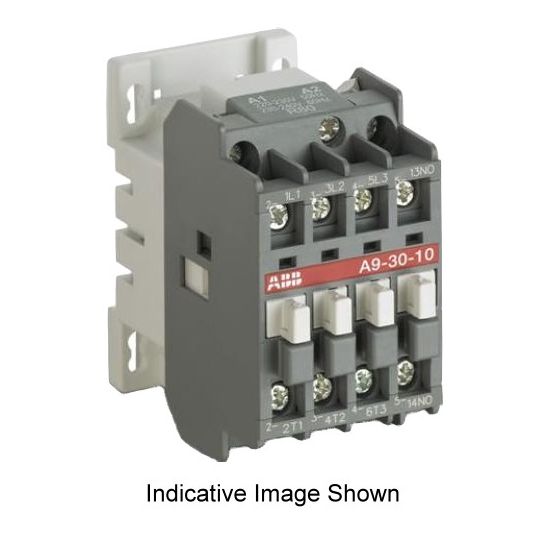

ABB Contactor General Purpose AC Operated Non-Reversing 3 Pole 40kW 30A AC3 145A AC1 230-240V 1NO-1NC Auxilary

$ABB\ABB_A9.jpg$

Description

Contactor General Purpose AC Operated Non-Reversing, 230-240 Volt AC, AC3 Rating (kW): 40, AC3 Rating (Amps): 30, AC1 Rating (Amps): 145, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 7-22/10-18 ms, Cable Clamp, DIN Rail Mount Or Base, IP10, 20, -60 to 80 deg C, 148 mm Height, 102 mm Width, 123.5 mm Depth, 3 Phase

Key Specifications

Barcode (EAN-13)	7320500142547
SKU	ABBA95301188
Brand	ABB
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	A95301188
AC1 Rating (Amps)	145 Amp AC1
AC3 Rating (Amps)	30 Amp AC3
AC3 Rating (kW)	40 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Depth	123.5 mm
Height	148 mm
IP Rating	IP10/20
Mounting Method	DIN Rail/Base
Number Of Poles	3 Pole
Operating Coil Voltage	230-240 Volt AC
Operating Time	7-22/10-18 ms
Please Note	3 Phase
Temperature	-60 to 80 deg C
Terminal Connection	Cable Clamp
Width	102 mm
