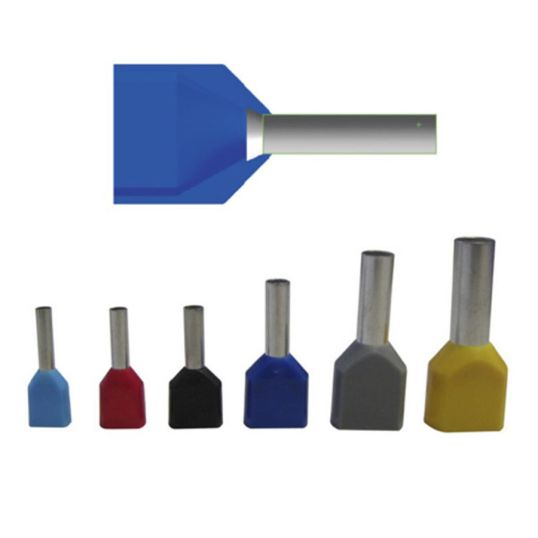

Alco Bootlace Ferrule Pre-Insulated Twin Wire Polyamide Blue 2 x 2.5mmx18.5mm OAL

Description

Bootlace Ferrule Pre-Insulated Twin Wire, 2 x 2.5 mm, 2 Conductors, 600 Volt, 10 mm Pin Length, 2.8 mm Pin Diameter, 7.8 mm Collar Inside Diameter, WATKSBLC-T2X6, 18.5 mm Overall Length, Copper Sleeve, Polyamide Insulation, Blue Insulation, Copper Contact, Tin Plated, 105 deg C, 50 Pack

Key Specifications

Barcode (EAN-13)	9328587012447
SKU	ALCBLTB/100
Brand	Alco
Product Type	Bootlace Ferrules

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pre-insulated twin bootlace terminals Provide precise terminations to multi-stranded cable Used to terminate two wires in the one terminal Reduces possibility of short-circuiting and ensures no strands stray Colour-coded polyamide insulation for easy identification 600V max
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCBLTB/100
Collar Inside Diameter	7.8 mm
Contact Material	Copper
Conductor Size	2 x 2.5 mm
Finish	Tin Plated
Insulation Colour	Blue
Crimping Die	WATKSBLC-T2X6
Number of Conductors	2
Insulation Material	Polyamide
Overall Length	18.5 mm
Pin Length	10 mm
Pack Size	50 Pack
Pin Diameter	2.8 mm
Temperature	105 deg C
Sleeve Material	Copper
Voltage Rating	600 Volt
