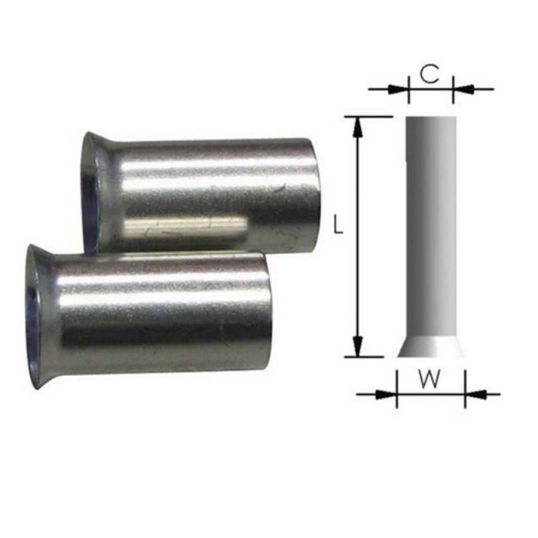

Alco Bootlace Ferrule Non-Insulated Electro Grade Copper 25mmx18mm OAL

chevron-left
loader
Loading...

Description

chevron-down
Bootlace Ferrule Un-Insulated, 25 mm, 1 Conductors, 18 mm Pin Length, 7.3 mm Pin Diameter, 9.5 mm Collar Inside Diameter, WATKSBLC-35, 18 mm Overall Length, Copper Sleeve, Electro Grade Copper Insulation, Copper Contact, Tin Electroplated, 200 deg C, 50 Pack

Key Specifications

chevron-down
Barcode (EAN-13)
9328587012560
SKU
ALCBLU25/50
Brand
Alco
Product Type
Bootlace Ferrules

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Non-insulated electro grade copper bootlace terminals
  • Provide precise terminations to multi-stranded cable
  • Reduce the possibility of short-circuiting and ensure no strands stray
  • Electro tinned finish for high conductivity
  • Flared end for easy cable entry
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product ALCBLU25/50
Collar Inside Diameter 9.5 mm
Contact Material Copper
Conductor Size 25 mm
Finish Tin Electroplated
Crimping Die WATKSBLC-35
Number of Conductors 1
Insulation Material Electro Grade Copper
Overall Length 18 mm
Pin Length 18 mm
Pack Size 50 Pack
Pin Diameter 7.3 mm
Temperature 200 deg C
Sleeve Material Copper
