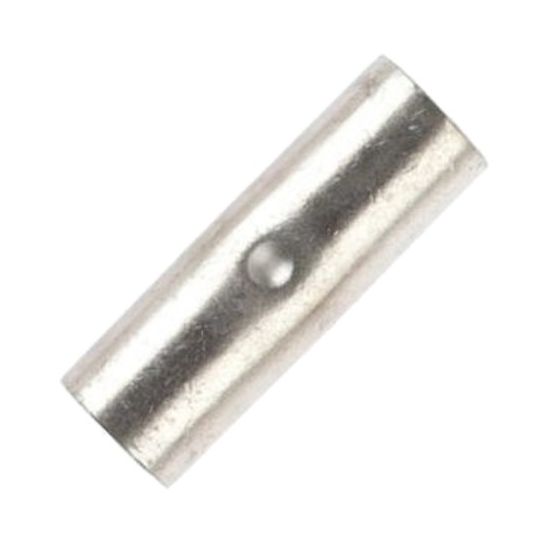

Alco Crimp Link Standard Non-Insulated Copper 4mm 7/0.85 22mm OAL

Description

Standard Non-Insulated Crimp Link, 4 mm, 7/0.85 Strands, 3.1 mm Inside Diameter, 4.8 mm Outside Diameter, WATK007/WATMH14/WATMH4NW/WATMEB100CW/WATSTCRS9/WATEK15/50G, 22 mm Overall Length, End Connector Terminal, Copper Body, Copper, Tin Electroplated, -55 to 155 deg C

Key Specifications

Barcode (EAN-13)	9328587004855
SKU	ALCLK4/100
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp links suitable for stranded to fine - stranded copper cable Long barrel Electro tinned finish for high conductivity Includes entrance chamfer and centre dimpling Complies with AS 4325.1 (cl7) (>10 sq-mm )
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCLK4/100
Body Material	Copper
Conductive Material	Copper
Conductor Size	4 mm
Crimping Die	WATK007/WATMH14/WATMH4NW/WATMEB100CW/WATSTCRS9/WATEK15/50G
Finish	Tin Electroplated
Inside Diameter	3.1 mm
Number of Strands	7/0.85
Outside Diameter	4.8 mm
Overall Length	22 mm
Temperature	-55 to 155 deg C
Terminal Type	End Connector
