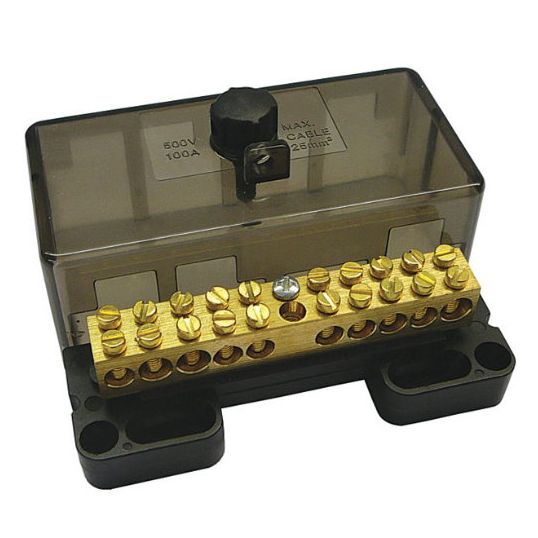

IPD Neutral Link 100A 10 Hole Front Wiring Panel Mount Black For 16-25 mm Cable
Loading...
Description
Neutral Link, 500 Volt, 100 Amp, 10 Hole, Front Wiring Connection, For Use With 16-25 sq-mm Cable, Panel Mounting, Black, 100 mm Length x 50 mm Width x 49 mm Depth
Key Specifications
| Barcode (EAN-13) |
9322017024741
|
|---|---|
| SKU |
ALSA100/10
|
| Brand |
IPD
|
| Product Type |
Meter Links & Link Bars
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121100 |
| UOM | EA |
| Vendor Product | A100/10 |
| Colour | Black |
| Connection Type | Front Wiring |
| Dimensions | 100 mm Length x 50 mm Width x 49 mm Depth |
| Current | 100 Amp |
| For Use With | 16-25 sq-mm Cable |
| Mounting Method | Panel |
| Number of Holes | 10 |
| Voltage | 500 Volt |
