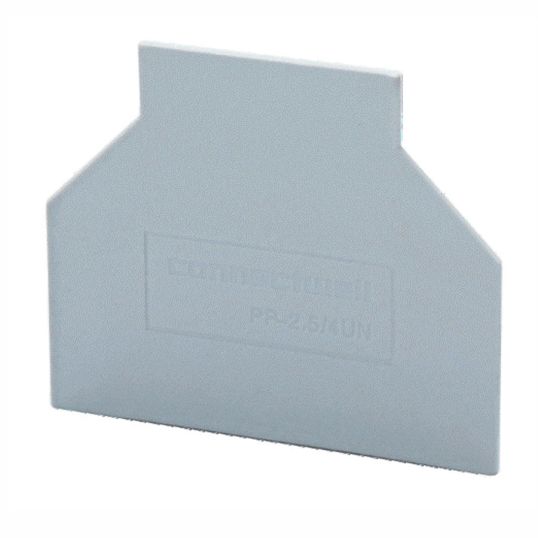

Connectwell Rail Terminal Partition Plate Grey For CTS6U/CTS10U/6UCR/10UCR Terminal Block
Loading...
Description
Partition Plate are used to segregate different groups of Terminal Blocks and provide the required creep age and clearance values in an assembly. Partition Plates electrically isolate adjacent shorting links. They also provide a separation between Terminal Blocks of different potentials.
Key Specifications
| Barcode (EAN-13) |
9322017021283
|
|---|---|
| SKU |
ALSPP6/10U
|
| Brand |
Connectwell
|
| Product Type |
Rail Terminal Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 50 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | PP6/10U |
| Colour | Grey |
| Depth | 1.5 mm |
| For Use With | CTS6U/CTS10U/6UCR/10UCR Terminal Block |
| Height | 37.5 mm |
| Pack Size | 50 Pack |
| Width | 56.5 mm |
Downloads
