APEC Flexible Cable 1 Core 150mm 0.6/1kV Copper X-HF-110/HFS-110-TP Orange
Loading...
Description

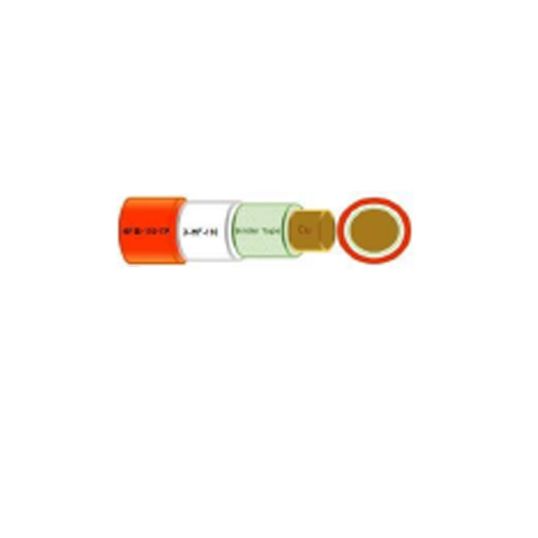

Flexible Cable, 150 mm, Class 5 Annealed Copper, 0.6-1 kV, 1 Core, 23.2 mm Overall Diameter, 1.4 mm Insulation Thickness, 1.6 mm Sheath Thickness, X-HF-110 Insulation, White Insulation, HFS-110-TP Sheath, Orange Sheath, 110 deg C, AS/NZS 5000.1 AS/NZS 3808
Key Specifications
| Barcode (EAN-13) |
932666302181
|
|---|---|
| SKU |
APEFXV150WOHFS110
|
| Brand |
APEC
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | FXV150WOHFS110 |
| Conductor Size | 150 mm |
| Conductor Type | Class 5 Annealed Copper |
| Insulation Colour | White |
| Insulation Material | X-HF-110 |
| Insulation Thickness | 1.4 mm |
| Overall Diameter | 23.2 mm |
| Number of Cores | 1 Core |
| Sheath Colour | Orange |
| Sheath Material | HFS-110-TP |
| Sheath Thickness | 1.6 mm |
| Standards | AS/NZS 5000.1 AS/NZS 3808 |
| Temperature | 110 deg C |
| Voltage | 0.6-1 kV |
