APEC Circular Power Cable XLPE 1 Core 120mm 0.6/1kV Stranded Aluminium XLPE/PVC Black
Loading...
Description

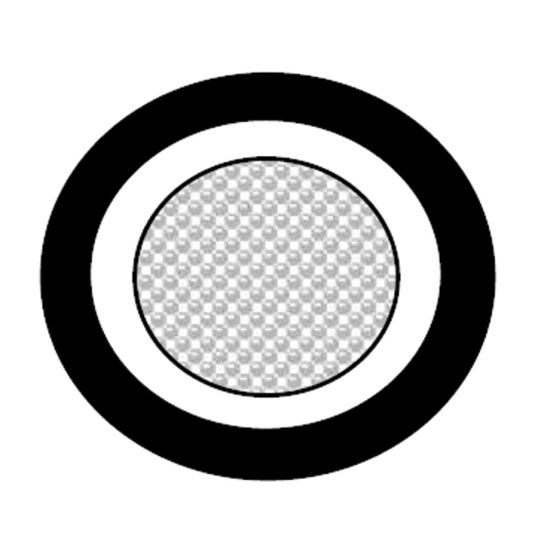

Circular XLPE Cable, 120 mm, Stranded Aluminium, 0.6-1 kV, 1 Core, 20.8 mm Overall Diameter, 1.2 mm Insulation Thickness, 1.5 mm Sheath Thickness, Natural Core, XLPE Insulation, PVC Sheath, Black Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666300757
|
|---|---|
| SKU |
APEXV120A01
|
| Brand |
APEC
|
| Product Type |
Cables Circular
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | XV120A01 |
| Conductor Size | 120 mm |
| Conductor Type | Stranded Aluminium |
| Core Colour | Natural |
| Insulation Material | XLPE |
| Insulation Thickness | 1.2 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 20.8 mm |
| Sheath Colour | Black |
| Sheath Material | PVC |
| Sheath Thickness | 1.5 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
