ASI Lamps Type 82 Sub-Miniature Lamp T1 2.5V 350mA Flange 0.1 MSCP 3000 hrs C2R Filament 3.9x9.5mm
Loading...
Description

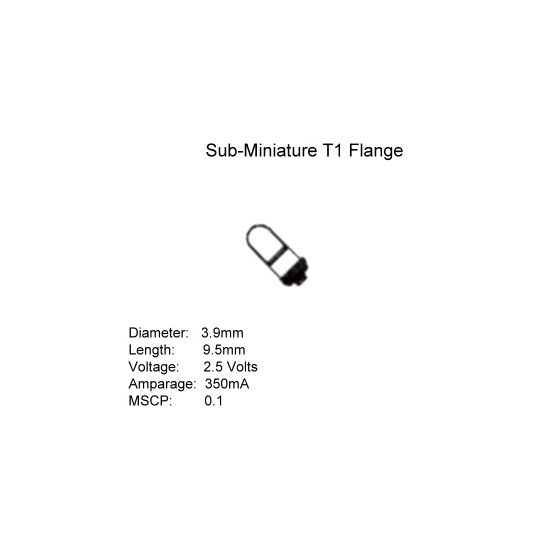

Indicator Lamp, Sub-Miniature, T1, 2.5 Volt, 350 mA, Flange Base, 0.1 MSCP, 3000 hrs Average Life, C2R Filament, 3.9 mm Overall Diameter, 9.5 mm Overall Length
Key Specifications
| SKU |
ASS82-002.5/350
|
|---|---|
| Brand |
ASI Lamps
|
| Range Name |
Type 82
|
| Product Type |
Indicator Lamps Sub-Mini
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | 082-002.5/350 |
| Base Type | Flange |
| Diameter | 3.9 mm |
| Average Lamp Life | 3000 hrs |
| Current | 350 mA |
| Filament | C2R |
| Lamp Shape | T1 |
| MSCP | 0.1 MSCP |
| Voltage | 2.5 Volt |
