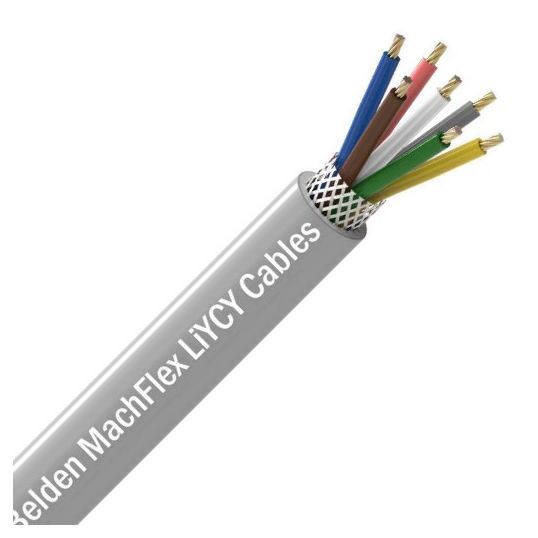

Belden 0.5mm 4 Core Instrumentation Cable Unarmoured Overall Screened

Description

Instrumentation Cable, Unarmoured, 0.5 mm, Bare Copper, 350-500 Volt, 4 Core, Overall Screened Screen, 6.5 mm Overall Diameter, 39 mm Static/97.5 mm Flexible Bend Radius, >20 GOhm/cm Insulation Resistance, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Grey Sheath, Static: -40 to 80 deg C/Flexible: -5 to 70 deg C, DIN VDE 0295 IEC 60228 BS 6360 DIN EN 50290-2-22 RoHS REACH & CE

Key Specifications

SKU	BEL4C0.5YCYF2V500M
Brand	Belden
Range Name	Machflex
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	4C0.5YCY F2V500M
Conductor Size	0.5 mm
Conductor Type	Bare Copper
Bend Radius	Static 39 mm/Flexible 97.5 mm
Insulation Resistance	>20 GOhm/cm
Insulation Material	PVC
Number of Pairs	4 Core
Overall Diameter	6.5 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Grey
Screen Format	Overall Screened
Sheath Material	PVC
Standards	DIN VDE 0295 IEC 60228 BS 6360 DIN EN 50290-2-22 RoHS REACH & CE
Voltage	350-500 Volt
Temperature	Static -40 to 80 deg C Flexible -5 to 70 deg C
