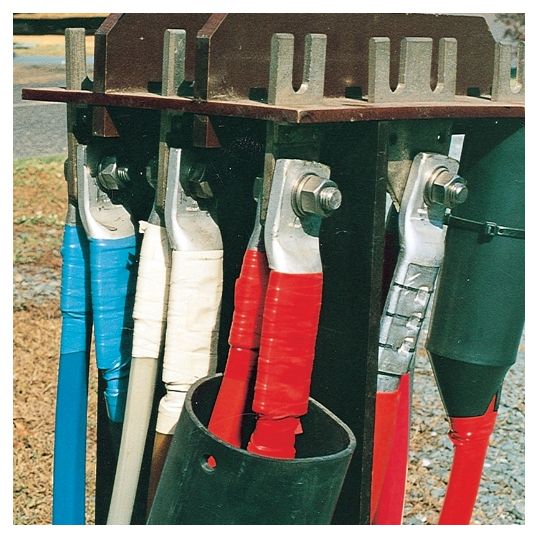

Cabac Crimp Lug 4 Core Sector Aluminium 240mm M12 Stud 123mm OAL

$Cabac\Cabac_ALS.jpg$

Description

Crimp Lug, 4 Core Sector, Aluminium, 240 mm Conductor, M12 Stud, 110 MPa, Ductile Rating: 28%, Resistivity: 2.6 µOhm cm Maximum, Conductivity: 61.8% IACS Minimum, Crimping Die: HT130-A15 NEST, HT130-A19 INDENT, 3 Crimps, Annealed Aluminium Body, Annealed Aluminium Conductor, -20 to 140 deg C, 123 mm Overall Length, 40 mm Lug Length, 35 mm Lug Width, 8 mm Lug Thickness, 63mm Barrel

Key Specifications

Barcode (EAN-13)	9318674503606
SKU	CAAALS240/4-12
Brand	Cabac
Range Name	Sector Lugs
Product Type	Lugs For Sector Cables

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Lugs are designed to fit 4 core solid sector aluminium cables dimensioned according to BS3988-1970 Compound reduces contact resistance and inhibits corrosion Designed to be crimped with CABAC and MSS Power tools and dies Crimp with nest and indent dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALS240/4-12
Barrel Length	63 mm
Body Material	Annealed Aluminium
Conductive Material	Annealed Aluminium
Conductivity	61.8% IACS Min
Conductor Size	240 mm
Crimping Die	HT130-A15 NEST/HT130-A19 INDENT
Ductile Rating	28%
Lug Length	40 mm
Overall Length	123 mm
Lug Thickness	8 mm
Lug Width	35 mm
Number of Crimps	3
Resistivity	2.6 µOhm/cm Max
Stud Size	M12 Stud
Temperature	-20 to 140 deg C
Tensile Strength	110 MPa
