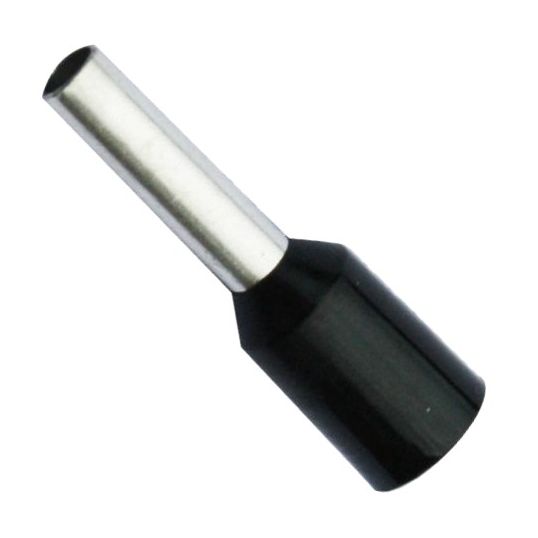

Cabac Bootlace Ferrule Insulated 25mm 7.7x16mm Pin 28mm OAL Black

Description

Insulated Bootlace Ferrule, 25 mm, 1 Conductors, 16 mm Pin Length, 7.7 mm Pin Diameter, 12 mm Collar Inside Diameter, HNKE, 28 mm Overall Length, Copper Sleeve, Nylon Insulation, Black Insulation, Copper Contact, Tin Plated, -55 to 105 deg C, 10 Pack

Key Specifications

Barcode (EAN-13)	9318674507635
SKU	CAABLP2500
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to terminate conductors by containing the strands in a thin walled Copper sleeve that is crimped onto the conductor Sleeve ensures no stray conductor strands or breaks from screw Crimp holds on sleeve until housing screw makes connection Crimp with one of our HNKE range of crimp tools Halogen free
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLP2500
Collar Inside Diameter	12 mm
Contact Material	Copper
Conductor Size	25 mm
Finish	Tin Plated
Insulation Colour	Black
Crimping Die	HNKE
Number of Conductors	1
Insulation Material	Nylon
Overall Length	28 mm
Pin Length	16 mm
Pack Size	10 Pack
Pin Diameter	7.7 mm
Temperature	-55 to 105 deg C
Sleeve Material	Copper
